7304B Bearing | 7304-B Angular Contact Bearing - 20x52x15

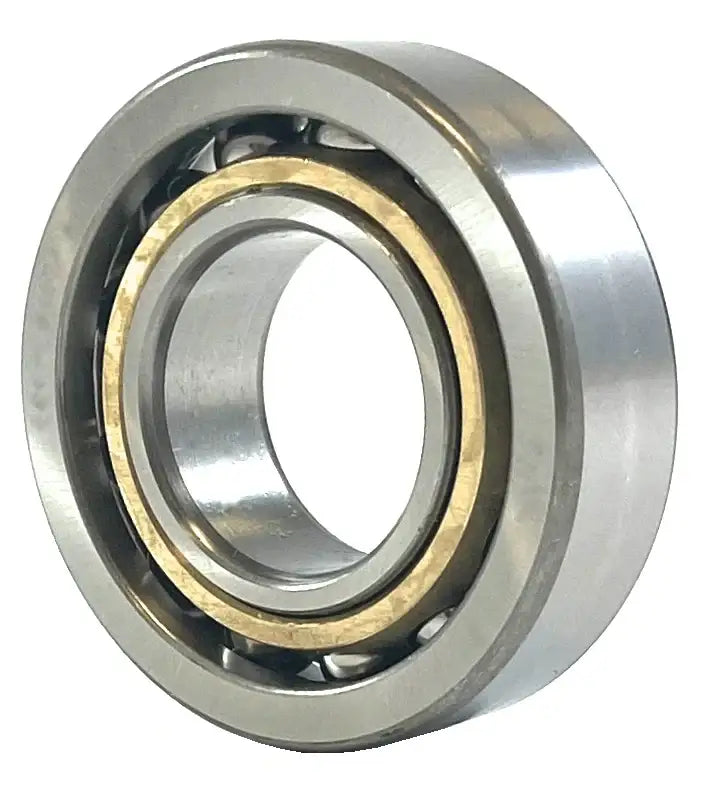

This 7304-B angular contact bearing is a high-precision 45-degree 20x52x15 bearing manufactured to ABEC 7 precision standards by AXIS. The contact angle on this type of bearing is the angle between the radial plane and a line that joins the two contact points between the inner and outer race. The higher the degree of the angle, the more increased the single-directional thrust capacity of the bearing. The AXIS 7304-B bearing separates itself from other brands by using high-quality metals, a bronze cage, and the superior ABEC 5 precision rating they are manufactured to. The more precise a bearing is, the better it performs in any given application. 7304-B angular contact bearings are typically found in applications such as agriculture, chemical facilities, utilities, and a range of general industrial applications. For additional information or to get a quote, please contact our customer support team and we will be happy to assist you!

7304-B Angular Contact Bearing Dimensions

• Bearing Size:7304B
• Dimension (d): 20mm
• Dimension (D): 52mm
• Dimension (B): 15mm
• Dynamic Load Rating: 3650 LBS
• Static Load Rating: 1960 LBS
• Limiting Speed (Grease): 13000 RPM
• Limiting Speed (OIL): 17000 RPM
