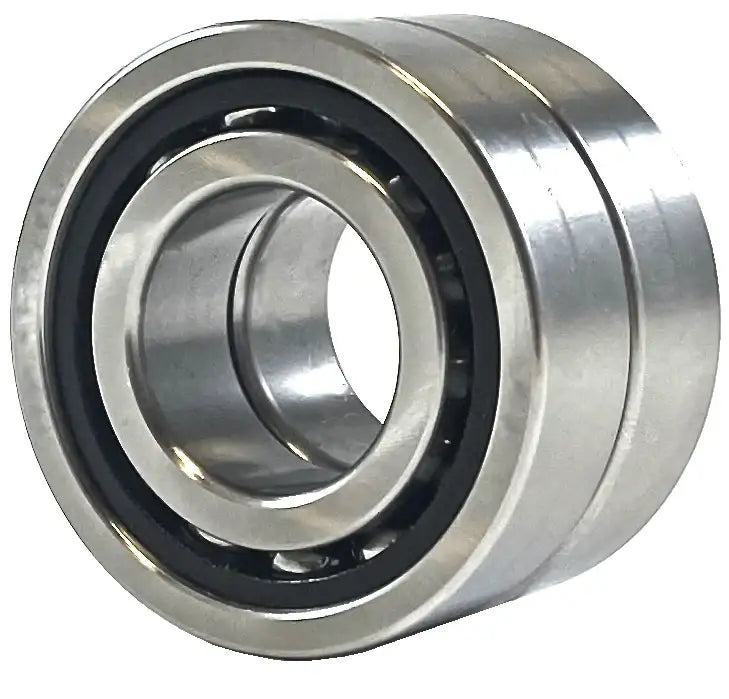

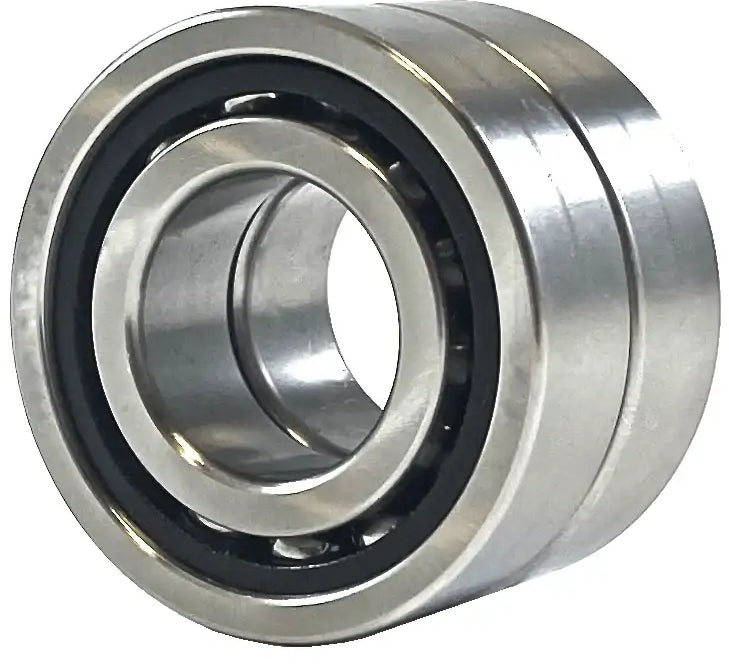

7024 CTBP4DUL spindle bearing pair is manufactured by AXIS to extremely precise ABEC 7 precision tolerances for maximum precision when in operation. This 120x180x56 7024 CTBP4DUL spindle bearing utilizes top-grades of materials as well as proprietary engineering and manufacturing techniques to provide the best spindle bearing on the market. Additional configurations for spindle bearings include simplex, triplex, and quadplex pairs to meet the application requirements. The purpose of a spindle bearing is to enhance and streamline spindle movement to ensure optimal machine speed and accuracy, this AXIS 7024 CTBP4DUL spindle bearing pair executes this purpose with the utmost accuracy and precision. Common applications for spindle bearings include; machine tools, medical equipment, aerospace, textile applications, and more. To get a quote or for additional information contact our customer support team and we will be happy to assist you.

7024 CTBP4DUL Spindle Bearing Pair Dimensions

• Bearing Size: 7024 CTBP4DUL
• Dimension (d): 120mm
• Dimension (D): 180mm
• Dimension (B): 56mm
• Dynamic Load Rating: 38146 LBS
• Static Load Rating: 48972 LBS
• Limiting Speed (Grease): 5360 RPM
• Limiting Speed (OIL): 8000 RPM
• Weight: 5.291 LBS
