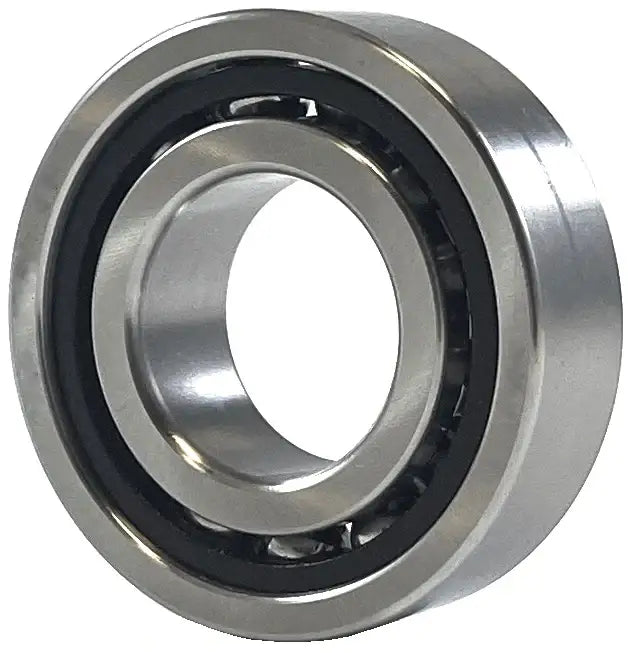

7018 CT.P4.UL spindle bearing is manufactured by AXIS to extremely precise ABEC 7 precision tolerances for maximum precision when in operation. This 90x140x24 7018 CT.P4.UL spindle bearing utilizes top-grades of materials as well as proprietary engineering and manufacturing techniques to provide the best spindle bearing on the market. Additional configurations for spindle bearings include duplex, triplex, and quadplex pairs to meet the application requirements. The purpose of a spindle bearing is to enhance and streamline spindle movement to ensure optimal machine speed and accuracy, this AXIS 7018 CT.P4.UL spindle bearing executes this purpose with the utmost accuracy and precision. Common applications for spindle bearings include; machine tools, medical equipment, aerospace, textile applications, and more. To get a quote or for additional information contact our customer support team and we will be happy to assist you.

7018 CT.P4.UL Spindle Bearing Dimensions

• Bearing Size: 7018 CT.P4.UL
• Dimension (d): 90mm
• Dimension (D): 140mm
• Dimension (B): 24mm
• Dynamic Load Rating: 16096 LBS
• Static Load Rating: 15511 LBS
• Limiting Speed (Grease): 9500 RPM
• Limiting Speed (OIL): 16000 RPM
• Weight: 2.447 LBS
