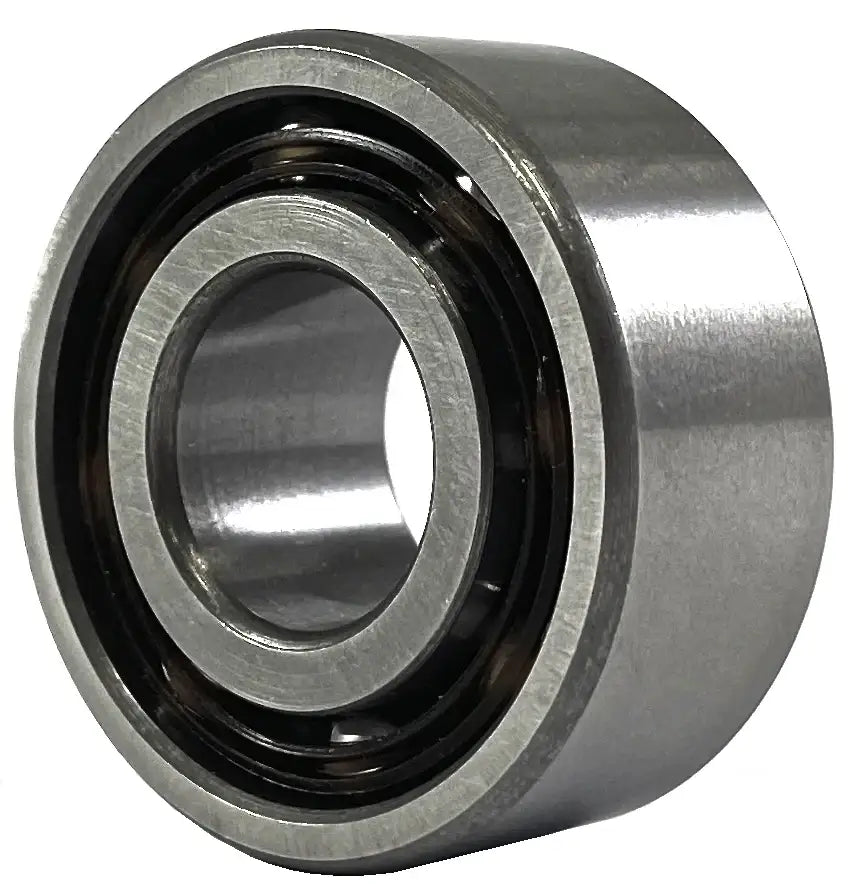

5314 Bearing | AXIS 5314 Ball Bearing - 70x150x2-1/2"

This 5314 Bearing is a high-precision premium double-row angular contact ball bearing made to ABEC 3 precision standards from AXIS. What sets this 5314 bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing itself has a micron deviation from a nominal of 20.000mm of -8 micrometers. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometers. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, so this also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the 5314 bearing features raceways that are precision honed to a superb finish.

More specifically, 5314 double row ball bearings possess higher radial and axial load capacities in either direction when compared to single-row ball bearings, they are found within a broad range of industrial and agricultural applications. For additional information or to get a quote on a 5314 ball bearing contact our customer support team and we will be happy to assist you!

5314 Bearing Dimensions

• Bearing Size: 5314
• Dimension (d): 70mm
• Dimension (D): 150mm
• Dimension (B): 2-1/2"
• Dynamic Load: 34845 LBS
• Static Load: 28101 LBS
• Limiting Speed (Open): 4300 RPM
• Weight: 8.93 LBS
