Module 1.5 Gear Rack Mounting Aid (10X10X60) C45K Material
SKU: 227-600-00-AID
Only 0 left in stockItem is out of stock
Item is unavailable
Module 1.5 Gear Rack Mounting Aid (10X10X60) C45K Material Features
Module 1.5 Gear Rack Mounting Aid (10X10X60) C45K Material Specifications

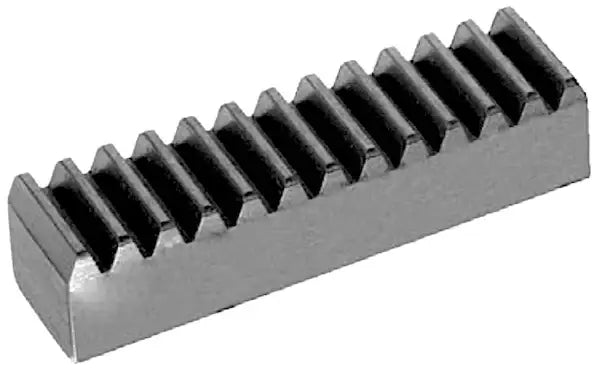

The module 1.5 gear rack mounting aid makes it easy to align and adequately space your gear racks! Our precision mounting tool is made from high-quality C45K carbon steel material with an 8d25 tooth quality and is a 13-tooth section for perfect form factor and ensure proper mounting. We also supply a full range of metric gear racks and metric spur gears! For additional information, contact our customer service team; we will gladly assist you.
Module 1.5 Gear Rack Mounting Aid Dimensions
- Part #: 22760000
- Module: 1.5
- Pitch: 4.71mm
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 8.5mm
- Length (L): 60mm
- Material: C45K
- Weight: 0.039KG
- Part #: 22760000
- Module: 1.5
- Pitch: 4.71mm
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 8.5mm
- Length (L): 60mm
- Material: C45K
- Weight: 0.039KG
