By Application > Agricultural Products > S-Type Chains
216BF1 Chain - Attachment Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 216BF1-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
216BF1 Chain - Attachment Agricultural Chain Features
216BF1 Chain - Attachment Agricultural Chain Specifications
216BF1 attachment chain is manufactured to DIN8189 standards and is primary used in agricultural equipment. This 216BF1 roller chain features solid rollers, heat treated components, and is supplied with a light high-quality lubricant for extended working life. For additional chain lubricant checkout our roller chain lubricant page! Besides 216BF1 attachment roller chain we also offer sprockets, bearings, shafting, motors, reducers and much more. For additional information or to get pricing please contact our customer support team and we will be happy to assist you.

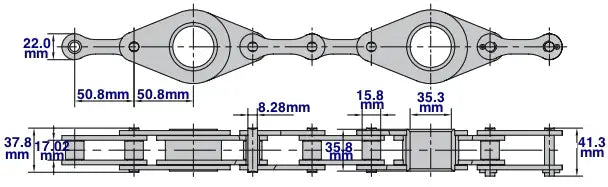

216BF1 Chain Dimensions
- Pitch (P): 50.8mm
- Roller Diameter (d1): 15.88mm
- Width Between Inner Plates (b1): 17.02mm
- Pin Diameter (d2): 8.28mm
- Pin Length (L): 35.3mm
- Connecting Link Pin Length (L1): 37.8mm
- Inner Plate Depth (L2): mm
- Plate Thickness (Lc): mm
- Plate Thickness (H2): mm
- Tensile Strength: 13,636 LBS
