20BB13 Idler Sprocket With 25mm Bore
Home > Power Transmission > Sprockets > Metric Roller Chain Sprockets > 20BB13 Idler Sprocket With 25mm Bore

20BB13 Idler Sprocket With 25mm Bore

Note: Conforms To Metric ISO Standards
SKU: 20BB13-IDLER-SPROCKET
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51714218099055" , "metafield_value":""}]
20BB13 Idler Sprocket With 25mm Bore Description/Features
20BB13 Idler Sprocket With 25mm Bore Specifications

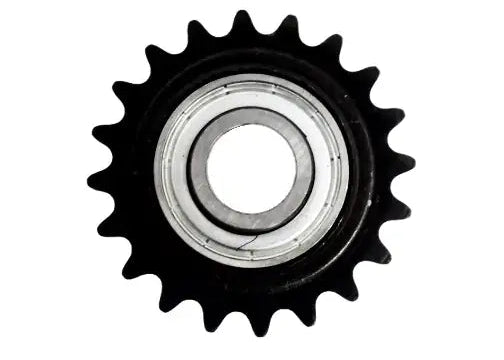

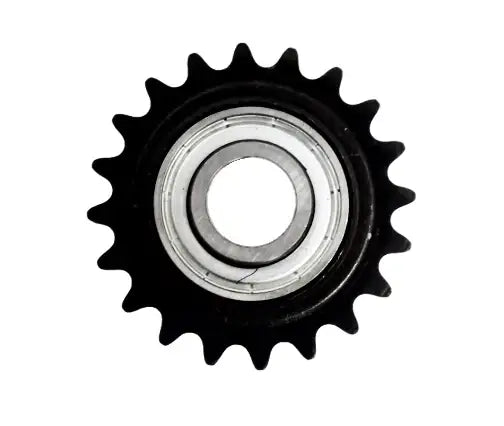

20BB13 Idler Sprocket With 25mm Bore is manufactured for 20B roller chain and utilizes a premium-grade ball bearing as the idler component. Idler sprockets are utilized in most conveying systems and tensioning systems. We also offer other configurations of this 20BB13 idler sprocket such as different bore sizes, and tooth counts. For more information or to get a quote please contact us and we will be happy to assist you.

20BB13 Idler Sprocket Dimensions


20BB13 Idler Sprocket With 25mm Bore
  • Sprocket Size: 20BB13
  • Tooth Count: 13
  • Chain Size: 20B-1
  • Pitch: 31.75mm
  • Dimension (OD): 132.7mm
  • Dimension (N): 148.0mm
  • Dimension (T): 18.5mm
  • Dimension (ID): 25mm
  • Dimension (BD): 52mm
  • Dimension (H): 25.4mm
  • Dimension (L): 15mm
  • Sprocket Weight: 0.73 kG
  • Sprocket Size: 20BB13
  • Tooth Count: 13
  • Chain Size: 20B-1
  • Pitch: 31.75mm
  • Dimension (OD): 132.7mm
  • Dimension (N): 148.0mm
  • Dimension (T): 18.5mm
  • Dimension (ID): 25mm
  • Dimension (BD): 52mm
  • Dimension (H): 25.4mm
  • Dimension (L): 15mm
  • Sprocket Weight: 0.73 kG
