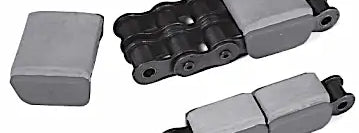

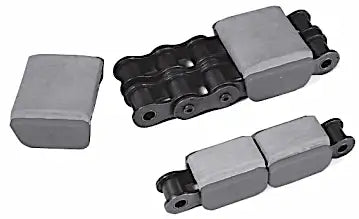

20B-2 Rubber Top Roller Chain Snap-On Style
Note:
Custom Cut to Length Chain Also Available
SKU: 20B-2-CLIP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
20B-2 Rubber Top Roller Chain Snap-On Style Features
20B-2 Rubber Top Roller Chain Snap-On Style Specifications
20B-2 rubber top roller chain snap-on style utilizes polyamide snap-on attachments that fit the standard chain. The benefits of this design are that the snap-on style makes it to where you can replace and repair links instead of having to buy a whole new chain, and they help protect the chain. Our 20B-2 rubber top roller chain snap-on style is manufactured to ISO Metric British Standards and uses precision heat-treated components for optimal performance and overall durability. Besides the chain, we also supply a plethora of premium metric roller chain sprockets, roller chain guide, v-belt pulleys, v-belts, and much more!
20B-2 Rubber Top Roller Chain Snap-On Style Dimensions
- Chain Size: 20B-2 CLIP
- Dimension (P): 31.75mm
- Dimension (b1): 19.56mm
- Dimension (d1): 10.19mm
- Dimension (d3): 19.05mm
- Dimension (e): 36.45mm
- Dimension (h): 26.4mm
- Dimension (l1): 72.5mm
- Dimension (l2): 61.5mm
- Dimension (H1): 25.0mm
- Dimension (H2): 19.0mm
- Dimension (F2): 80.5mm
- Weight: 8.40 kG/ M
- Chain Size: 20B-2 CLIP
- Dimension (P): 31.75mm
- Dimension (b1): 19.56mm
- Dimension (d1): 10.19mm
- Dimension (d3): 19.05mm
- Dimension (e): 36.45mm
- Dimension (h): 26.4mm
- Dimension (l1): 72.5mm
- Dimension (l2): 61.5mm
- Dimension (H1): 25.0mm
- Dimension (H2): 19.0mm
- Dimension (F2): 80.5mm
- Weight: 8.40 kG/ M
