2078P Bridge Conveyor Chain | 2078P Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 2078P-BRIDGE-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
2078P Bridge Conveyor Chain | 2078P Chain Features
2078P Bridge Conveyor Chain | 2078P Chain Specifications

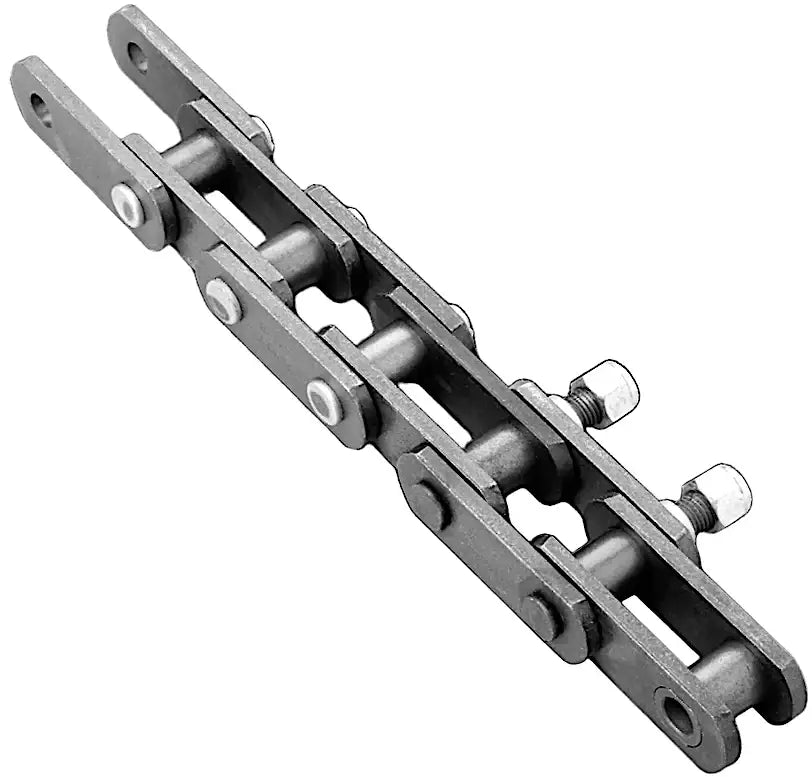

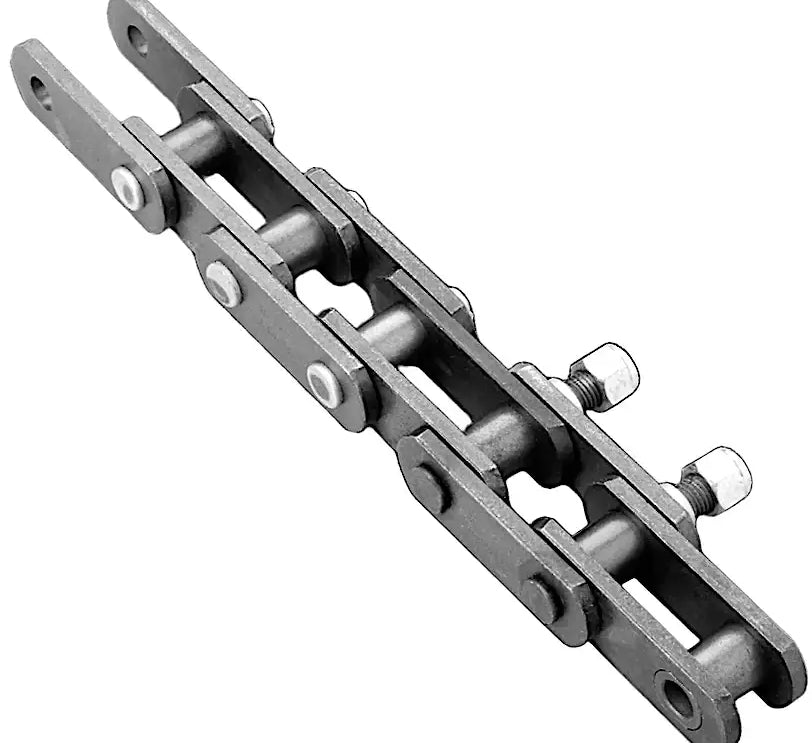

2078P bridge conveyor chain is a high-strength engineer-class mining chain utilized specifically in bridge conveying applications. Our precision bridge conveyor chains showcase superior performance, reliability, and strength. Manufactured from high-grade steel grades, with specific heat-tret processes done to each component, this 2078P chain is built to operate in some of the most demanding applications in the world. Additionally, our 2078P chain directly interchanges with other brands and manufacturers. Besides the 2078P chain, we also offer 2078P sprockets! For additional information or to get a quote on the 2078P chain, contact our customer service team, and we will be happy to assist you!
2078P chain dimensions
- Chain size: 2078P
- Dimension (P): 1.750"
- Dimension (B): 1.000"
- Dimension (C): 0.875"
- Dimension (D): 1.250"
- Dimension (E): 0.250"
- Dimension (F): 0.250"
- Dimension (G): 0.438"
- Dimension (H): 2.406"
- Dimension (H2): 3.438"
- Dimension (b): 0.500"
- Dimension (d): 7/16"-20 LOCKNUT
- Dimension (v): 1.125"
- Average Ultimate Strength: 26,500 LBS
- Rated Working Load: 2,650 LBS
- Weight: 4.84 LBS/ FT
- Chain size: 2078P
- Dimension (P): 1.750"
- Dimension (B): 1.000"
- Dimension (C): 0.875"
- Dimension (D): 1.250"
- Dimension (E): 0.250"
- Dimension (F): 0.250"
- Dimension (G): 0.438"
- Dimension (H): 2.406"
- Dimension (H2): 3.438"
- Dimension (b): 0.500"
- Dimension (d): 7/16"-20 LOCKNUT
- Dimension (v): 1.125"
- Average Ultimate Strength: 26,500 LBS
- Rated Working Load: 2,650 LBS
- Weight: 4.84 LBS/ FT
