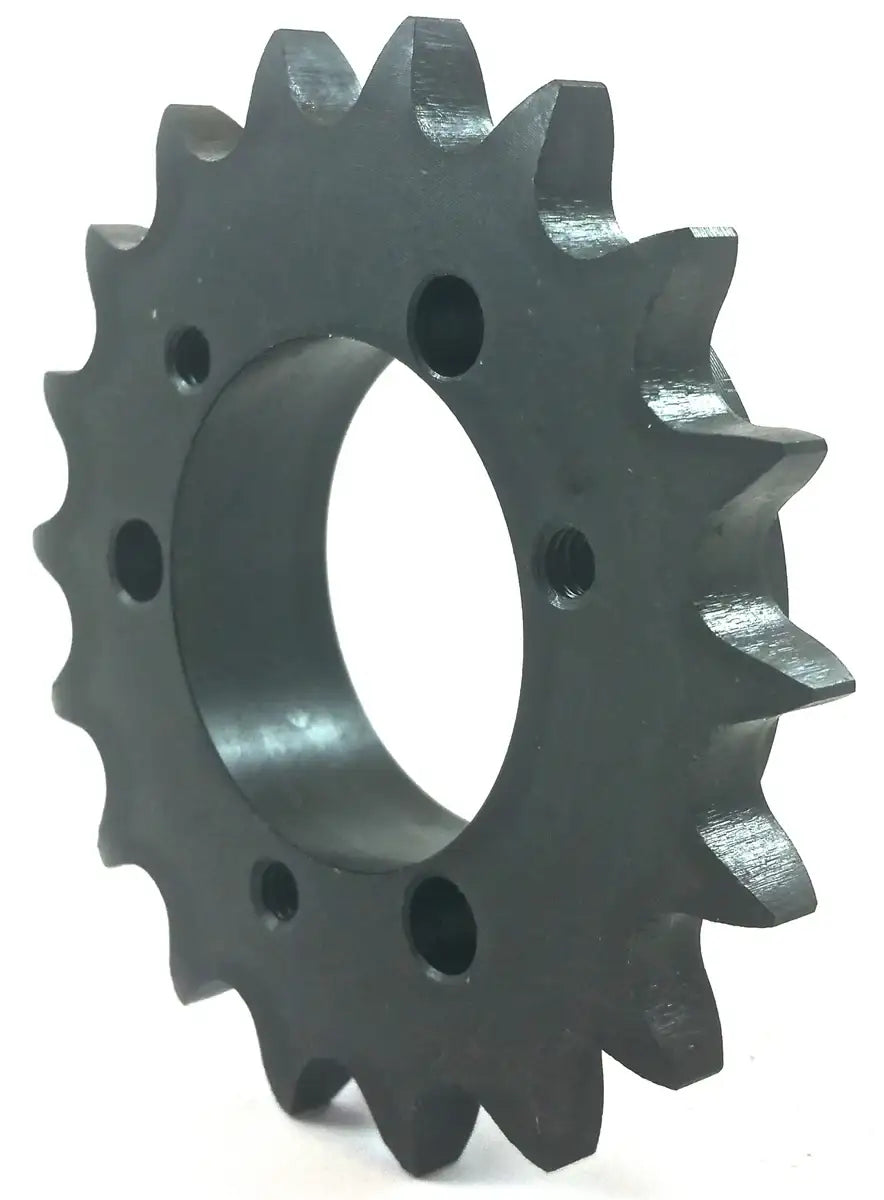

200U23 Sprocket
200U23 Sprocket
Note:
Custom Cut to Length Chain Also Available
Regular price
$2,329.99
$2,329.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: 200U23-SPROCKET
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
200U23 Sprocket Dimensions
Part Number: #200U23 Bushing Type: U0 Outside Diameter: 19.690" Pitch Diameter: 18.360" Type: 6 Maximum Bore: 5-1/2" Dimension (0L): 5-23/32" Dimension (L): 5-1/4" Dimension (C): 1-5/8" Dimension (H): 8-3/8" Dimension (P): 2-17/32" Nominal (T): 1.389" Number Of Teeth: 23 Weight With Hub: 147LBS Weight For Rim Only: 117LBS
Email:
Feature
Fully Meets ANSI Standards Has 23 Teeth U0-Bushing QD Type Sprocket 1-1/2" Stock Bore
Part Number: #200U23 Bushing Type: U0 Outside Diameter: 19.690" Pitch Diameter: 18.360" Type: 6 Maximum Bore: 5-1/2" Dimension (0L): 5-23/32" Dimension (L): 5-1/4" Dimension (C): 1-5/8" Dimension (H): 8-3/8" Dimension (P): 2-17/32" Nominal (T): 1.389" Number Of Teeth: 23 Weight With Hub: 147LBS Weight For Rim Only: 117LBS
