1965 Chain Features
1965 Chain Specifications

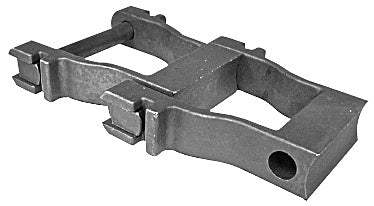

1965 Chain is considered a cast alloy drag chain and features an ultimate strength of 182,300 LBS. This 1965 cast alloy drag chain is extremely high-strength, heavy duty, and anti abrasive due to the common applications it is placed in. Besides the chain we also have a full line of 1965 sprockets, motors, gear boxes, bearings, and more. For more information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:
1965 Chain
  • Chain Size: 1965
  • Style: 2
  • Pitch (A): 9.00"
  • Weight: 50.1 LBS/ FT
  • Weight Per Pin: 6.0 LBS
  • Average Ultimate Strength: 182,300 LBS
  • Recommended Working Load: 23,400 LBS
  • Barrel Length (B): 12.44"
  • Sidebar Width (C): 2.50"
  • Pin Diameter (D): 1.25"
  • Maximum Sprocket Width (E): 10.25"
  • Maximum Overall Average Width (F): 18.38"
  • Pin Head to Center Line (G): 7.84"
  • Pin End to Center Line (H): 8.34"
