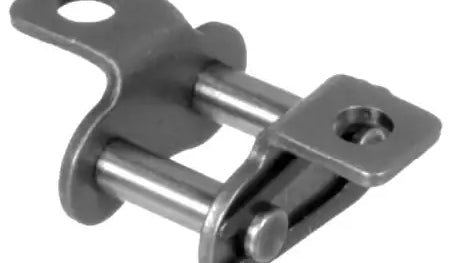

Metric 16B K1 Attachment Connecting Link
Note:
Custom Cut to Length Chain Also Available
$5.99
SKU: 16B-K1-ATTACHMENT-10800302
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Metric 16B K1 Attachment Connecting Link Features
Metric 16B K1 Attachment Connecting Link Specifications

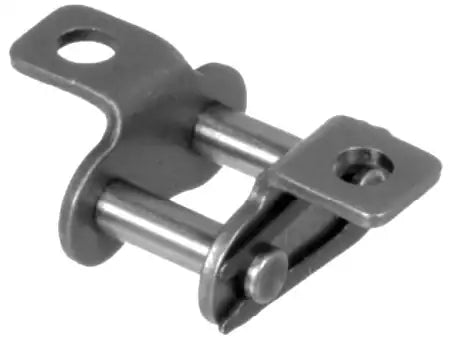

Our superior 16B K1 attachment connecting link is designed explicitly for metric 25.4mm pitch 16B chain and conforms to ISO and DIN dimensional standards for direct interchangeability. Each precision component of this 16B K1 attachment is made from top-quality carbon steel that has been heat-treated for extended working life and durability. We supply this attachment as a standard connecting link (master link) or assembled onto the 16B roller chain in specific increments. Design-wise, the 16B K1 attachment has a bent tab on both sides with one hole each for mounting. For additional information or to get a quote on our 16B K1 attachments, contact our customer service team, and we will gladly assist you.
16B K1 Attachment Dimensions
- Part #: 16B K1
- Configuration: One Hole on Both Sides
- Pitch (P): 25.4mm
- Inner Width (B1): 17.02mm
- Roller Link Width (B2): 25.40mm
- Roller Diameter (D1): 15.88mm
- Plate Height (G): 21.0mm
- Attachment Width (M): 19.01mm
- Attachment Hole I.D. (DL): 6.6mm
- Dimension (I): 25.40mm
- Dimension (F): 36.30mm
- Dimension (H): 15.88mm
- Plate Thickness (S): 3.10mm
- Part #: 16B K1
- Configuration: One Hole on Both Sides
- Pitch (P): 25.4mm
- Inner Width (B1): 17.02mm
- Roller Link Width (B2): 25.40mm
- Roller Diameter (D1): 15.88mm
- Plate Height (G): 21.0mm
- Attachment Width (M): 19.01mm
- Attachment Hole I.D. (DL): 6.6mm
- Dimension (I): 25.40mm
- Dimension (F): 36.30mm
- Dimension (H): 15.88mm
- Plate Thickness (S): 3.10mm
