Roller Chain > More Roller Chains > Non-Marking Rubber Top Roller Chains

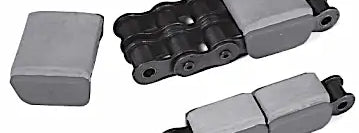

16B Rubber Top Roller Chain Snap-On Style
Note:
Custom Cut to Length Chain Also Available
SKU: 16B-1-CLIP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
16B Rubber Top Roller Chain Snap-On Style Features
16B Rubber Top Roller Chain Snap-On Style Specifications

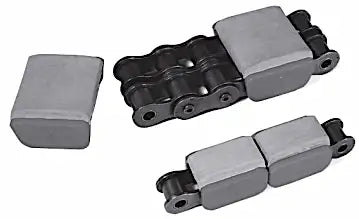

16B rubber top roller chain snap-on style utilizes polyamide snap-on attachments that fit the standard chain. The benefits of this design are that the snap-on style makes it to where you can replace and repair links instead of having to buy a whole new chain, and they help protect the chain. Our 16B rubber top roller chain snap-on style is manufactured to ISO Metric British Standards and uses precision heat-treated components for optimal performance and overall durability. Besides the chain, we also supply a plethora of premium metric roller chain sprockets, roller chain guide, v-belt pulleys, v-belts, and much more!
16B Rubber Top Roller Chain Snap-On Style Dimensions
- Chain Size: 16B-1 CLIP
- Dimension (P): 25.4mm
- Dimension (b1): 17.02mm
- Dimension (d1): 8.28mm
- Dimension (d3): 15.88mm
- Dimension (h): 21.0mm
- Dimension (l1): 33.0mm
- Dimension (l2): 49.0mm
- Dimension (H1): 21.4mm
- Dimension (H2): 15.4mm
- Dimension (F2): 39.0mm
- Weight: 3.25 kG/ M
- Chain Size: 16B-1 CLIP
- Dimension (P): 25.4mm
- Dimension (b1): 17.02mm
- Dimension (d1): 8.28mm
- Dimension (d3): 15.88mm
- Dimension (h): 21.0mm
- Dimension (l1): 33.0mm
- Dimension (l2): 49.0mm
- Dimension (H1): 21.4mm
- Dimension (H2): 15.4mm
- Dimension (F2): 39.0mm
- Weight: 3.25 kG/ M
