By Application > Mining Chain & Sprockets > High-Strength Mining Round Link Chain
14X50 Single Shackle | Round Link Single Bolt Shackle
Note:
Custom Cut to Length Chain Also Available
SKU: 14X50-SGL-SHACKLE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
14X50 Single Shackle | Round Link Single Bolt Shackle Features
14X50 Single Shackle | Round Link Single Bolt Shackle Specifications
Our 14X50 single bolt shackle is made from high-quality steel to precision tolerances to ensure optimal performance, wear life, and strength. This specific single bolt shackle is particularly made for a 14X50 round link chain and has a bolt hole of 0.63". It is important to note that when installing a 14X50 single bolt shackle, dimension C below should not be reduced by more than 0.020". For additional information or to get a quote on our 14X50 single bolt shackles, contact our customer support team, and we will gladly assist you!

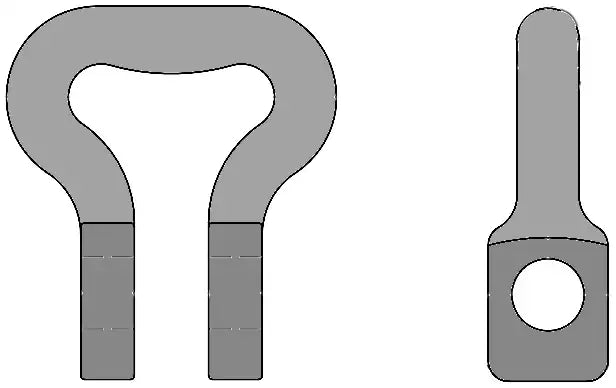

14X50 Single Bolt Shackle Dimensions
- Chain Size: 14X50
- Dimension (A-Bolt): 0.63"
- Dimension (B): 1.88"
- Dimension (C): 0.68"
- Dimension (D): 1.15"
- Weight: 0.80 LBS
- Chain Size: 14X50
- Dimension (A-Bolt): 0.63"
- Dimension (B): 1.88"
- Dimension (C): 0.68"
- Dimension (D): 1.15"
- Weight: 0.80 LBS
