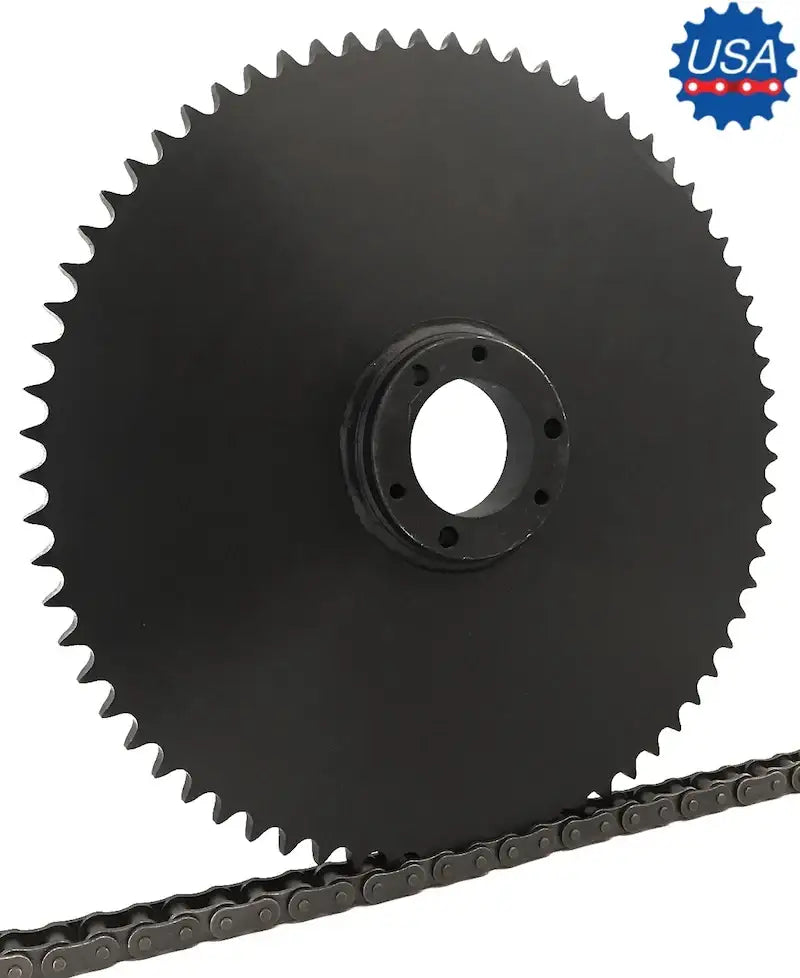

140M70 Sprocket (QD Type)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #140 Roller Chain Sprockets > #140 M-Type Sprockets

140M70 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$2,979.99
SKU: 140M70-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714160296303" , "metafield_value":""}]
140M70 Sprocket (QD Type) Features
140M70 Sprocket (QD Type) Specifications



  • Sprocket Size: 140M70
  • Tooth Count: 70
  • Bushing Type: M
  • Outside Diameter: 40.020"
  • Pitch Diameter: 39.006"
  • Sprocket Type: C1
  • Maximum Bore: 5-1/2"
  • Dimension (L1): 6-3/4"
  • Dimension (L2): 6-3/4"
  • Dimension (C): 9"
  • Dimension (Y): 2-29/32"
  • Dimension (P): 2-29/32"
  • Dimension (G): 2-17/32"
  • Dimension (V): 1-13/32"
  • Dimension (X): 5-3/16"
  • Dimension (T): 0.924"
  • Bushing Weight: 37.0 LBS
  • Sprocket Weight: 264.0 LBS
  • Sprocket Size: 140M70
  • Tooth Count: 70
  • Bushing Type: M
  • Outside Diameter: 40.020"
  • Pitch Diameter: 39.006"
  • Sprocket Type: C1
  • Maximum Bore: 5-1/2"
  • Dimension (L1): 6-3/4"
  • Dimension (L2): 6-3/4"
  • Dimension (C): 9"
  • Dimension (Y): 2-29/32"
  • Dimension (P): 2-29/32"
  • Dimension (G): 2-17/32"
  • Dimension (V): 1-13/32"
  • Dimension (X): 5-3/16"
  • Dimension (T): 0.924"
  • Bushing Weight: 37.0 LBS
  • Sprocket Weight: 264.0 LBS
