Roller Chain > More Roller Chains > Hollow Pin Roller Chain > Specialty Hollow Pin Chains

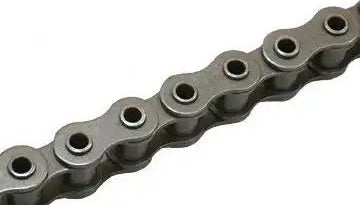

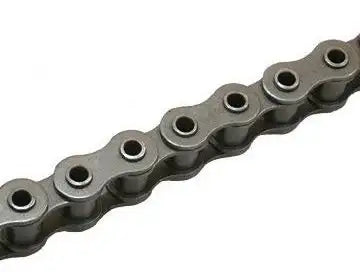

140 PF-1 Chain (Hollow Pin)
Note:
Custom Cut to Length Chain Also Available
SKU: 140-PF-1-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
140 PF-1 Chain (Hollow Pin) Features
140 PF-1 Chain (Hollow Pin) Specifications
Chain Size: 140 PF-1 Pitch (P): 19.05 mm Roller Diameter (Dr): 12.07 mm Inside Width (W): 11.68 mm Plate Height (Hi): 16.13 mm Pin Outside Diameter (Dp): 5.72 mm Pin Inside Diameter (Df): 4.20 mm Pin Width (A1): 21.70 mm Overall Width (B): 26.00 mm Average Ultimate Strength: 12.00 kN Average Weight: 1.07 Kg/m
Email:
Chain Size: 140 PF-1 Pitch (P): 19.05 mm Roller Diameter (Dr): 12.07 mm Inside Width (W): 11.68 mm Plate Height (Hi): 16.13 mm Pin Outside Diameter (Dp): 5.72 mm Pin Inside Diameter (Df): 4.20 mm Pin Width (A1): 21.70 mm Overall Width (B): 26.00 mm Average Ultimate Strength: 12.00 kN Average Weight: 1.07 Kg/m
