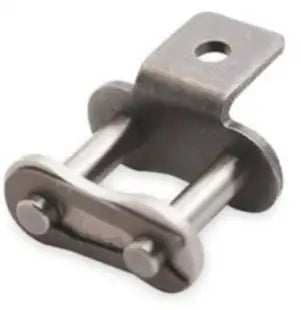

#140 A-1 Attachment

#140 A-1 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: 140-A-1-ATTACHMENT
Shipping calculated at checkout.
Other Customers Viewed
140 Roller Chain 10ft Box - 140 Chain | ANSI Roller Chain
140 Roller Chain 10ft Box - 140 Chain | ANSI Roller Chain
$289.99
Login
General Duty Plus #140 Roller Chain - 10ft Box
General Duty Plus #140 Roller Chain - 10ft Box
$414.99
Login
Premium #140 Roller Chain - 10ft Box | Premier Series Chain
Premium #140 Roller Chain - 10ft Box | Premier Series Chain
$719.99
Login
View full details
Description
Specification
#140 A-1 attachment is a one side, one hole attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #140 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #140 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #140 A-1 attachments please contact us and we will be happy to assist you.

Dimensions:

  • Attachment size: #140 A-1
  • Pitch (P): 1.750"
  • Width Between Roller Links (W): 1.000"
  • Roller Diameter (R): 1.000"
  • Pin Diameter (D): 0.500"
  • Overall Chain Width: 2.118"
  • Overall Connecting Link Width: 2.307"
  • Link Plate Height (H): 1.661"
  • Link Plate Thickness (T): 0.221"
  • Attachment Dimension (C): 1.750"
  • Attachment Dimension (N): 1.375"
  • Attachment Dimension (O): 0.448"
  • Attachment Dimension (S): 1.125"
  • Attachment Dimension (X): 2.420"
  • Additional Weight Per Attachment: 0.157 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • Premium Quality Attachment
  • Manufactured to ANSI Standards
  • Heat-Treated Components
Featured image
  • Attachment size: #140 A-1
  • Pitch (P): 1.750"
  • Width Between Roller Links (W): 1.000"
  • Roller Diameter (R): 1.000"
  • Pin Diameter (D): 0.500"
  • Overall Chain Width: 2.118"
  • Overall Connecting Link Width: 2.307"
  • Link Plate Height (H): 1.661"
  • Link Plate Thickness (T): 0.221"
  • Attachment Dimension (C): 1.750"
  • Attachment Dimension (N): 1.375"
  • Attachment Dimension (O): 0.448"
  • Attachment Dimension (S): 1.125"
  • Attachment Dimension (X): 2.420"
  • Additional Weight Per Attachment: 0.157 LBS
