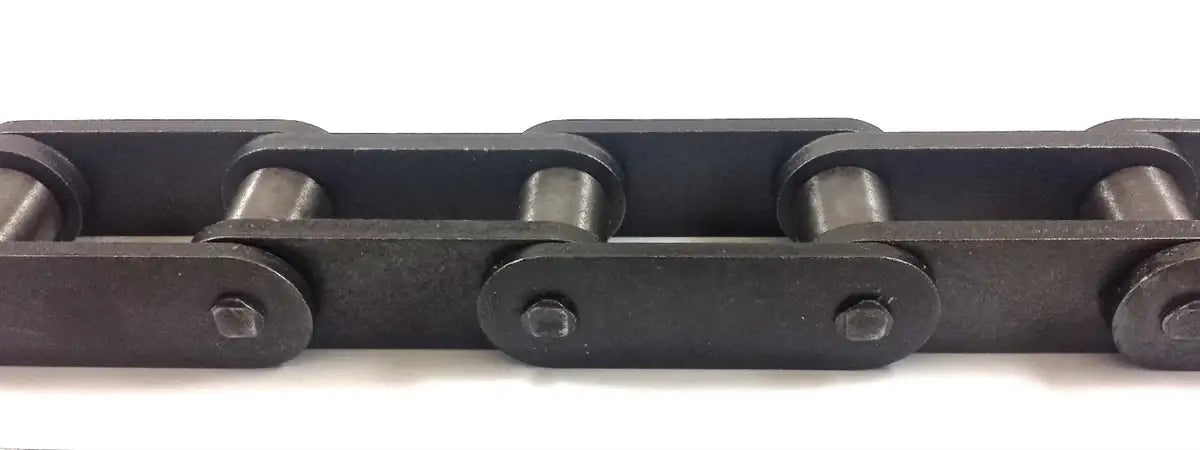

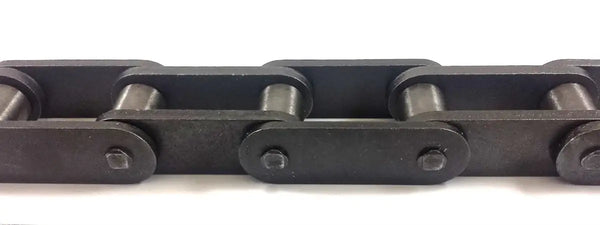

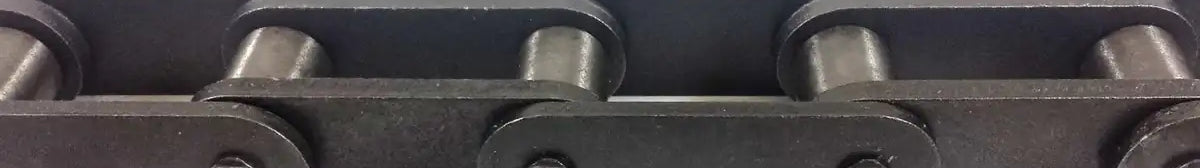

1353 Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 1353-CHAIN
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
1353 Chain Features
1353 Chain Specifications
This 1353 chain is a straight sidebar drive chain that is manufactured to be high strength, durable, and have great performance. We offer some of the best pricing in the industry on 1353 chain! 1353 chain is found in some of the most sever applications on earth including power drives, constructing machinery, and heavy duty conveyors. 1353 can even operate in these harsh applications at moderately high speeds. This chain has been manufactured using select grades of alloy steel for high strength and durability, along with press fitted pins to prevent pin rotation. Additionally we offer a full line of high quality 1353 chain sprockets that range in, construction, tooth count, bore, and hub configurations. For pricing and availability on 1353 straight sidebar drive chain or sprockets please contact us.
Chain #: 1353 Pitch: 4.090" Pin Length (F): 5.820" Inside Width (E): 2.250" Pin Diameter (G): 1.310" Pin Style: K / Fully Round Pin Material: Heat Treated & Induction Hardened Alloy Steel Roller Diameter (D): 2.630" Roller Material: Heat Treated Alloy Steel Sidebar Height (H): 3.500" Sidebar Thickness (T): 0.630" Sidebar Material: Heat Treated Alloy Steel Bushing Diameter: 1.880" Bushing Material: Case Hardened Alloy Steel Average Ultimate Strength: 210,000 LBS Maximum Working Load: 16,000 LBS Weight Per Foot: 37.6 LBS
