12BTB48 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: 12BTB48-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
12BTB48 Sprocket (Taper Bushed) Features
12BTB48 Sprocket (Taper Bushed) Specifications

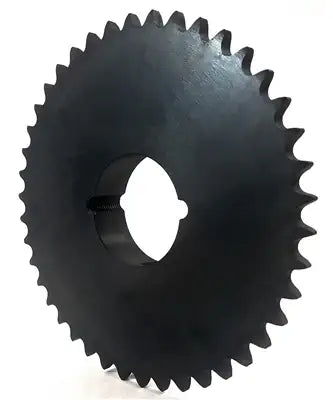

This 12BTB48 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 2012 taper bushing. Our 12BTB48 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our 12BTB48 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 48 tooth sprocket, we also stock a high-quality 12B-1 roller chain, 2012 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed 12BTB48 sprockets, please contact us and one of our sales team members will be happy to assist you.
12BTB48 Sprocket Dimensions
- Sprocket Size: 12BTB48
- Tooth Count: 48
- Pitch Diameter: 291.27mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Dimension (L): 31.75mm
- Dimension (C): 90.47mm
- Sprocket Weight: 4.24 kg
- Bushing Weight: 0.77 kg
- Sprocket Size: 12BTB48
- Tooth Count: 48
- Pitch Diameter: 291.27mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Dimension (L): 31.75mm
- Dimension (C): 90.47mm
- Sprocket Weight: 4.24 kg
- Bushing Weight: 0.77 kg
