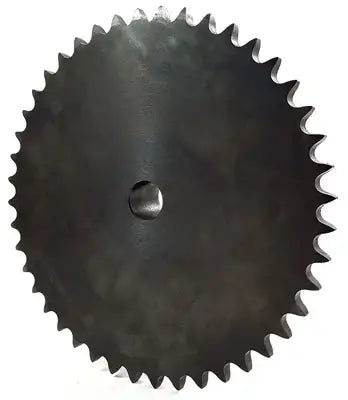

12B42 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 12B42-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
12B42 Sprocket With Stock Bore Features
12B42 Sprocket With Stock Bore Specifications
This 12B42 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our 12B42 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our 12B42 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 42 tooth sprocket, we also stock a high-quality 12B roller chain and a wide array of roller chain accessories. For more information or to get a quote on 12B42 sprockets, please contact us and one of our sales team members will be happy to assist you.
12B42 Sprocket Dimensions
- Sprocket Size: 12B42
- Tooth Count: 42
- Pitch Diameter: 254.92mm
- Stock Bore: 25mm
- Maximum Recommended Bore: 70mm
- Hub Diameter: 107mm
- Length Thru Bore (LTB): 40mm
- Sprocket Weight: 5.78 kg
- Sprocket Size: 12B42
- Tooth Count: 42
- Pitch Diameter: 254.92mm
- Stock Bore: 25mm
- Maximum Recommended Bore: 70mm
- Hub Diameter: 107mm
- Length Thru Bore (LTB): 40mm
- Sprocket Weight: 5.78 kg
