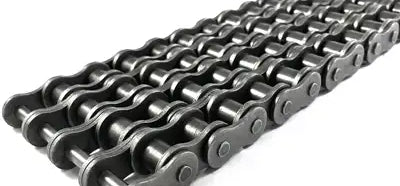

Quad-Strand Metric 12B-4 Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
12B-4 roller chain is a metric quad-strand chain with a 19.05mm pitch made per ISO and British Standards. Our superior 12B-4 chain is capable of operating within some of the most demanding applications around the world. Specifically, the chain is assembled using precision carbon and alloy steel components that have undergone heat treatment and shot-peening processes. Post assembly, the 12B-4 roller chain is pre-loaded to a specific amount to reduce initial and long-term elongation. We supply 12B-4 roller chains in lengths of 10ft, including one connecting link per box. Additionally, we offer 12B-4 chain sprockets and chain tools. For more information or to get a quote on our tier one 12B-4 roller chain, contact our customer support team, and we will be happy to assist you!
12B-4 Chain Dimensions
- Part #: 12B-4
- Pitch (P): 19.05mm
- Roller Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 81.15mm
- Connecting Link Overall Width (X): 85.75mm
- Plate Height (H): 16.00mm
- Plate Thickness (T): 1.80mm
- Pin Diameter (L): 5.72mm
- Minimum Breaking Load: 11,788 KGS
- Weight: 4.63 kG/ m
- Part #: 12B-4
- Pitch (P): 19.05mm
- Roller Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 81.15mm
- Connecting Link Overall Width (X): 85.75mm
- Plate Height (H): 16.00mm
- Plate Thickness (T): 1.80mm
- Pin Diameter (L): 5.72mm
- Minimum Breaking Load: 11,788 KGS
- Weight: 4.63 kG/ m
