120R23 Sprocket (Taper Bushed)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #120 Roller Chain Sprockets > #120 R Type Sprockets

120R23 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$310.99
SKU: 120R23-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714133754223" , "metafield_value":""}]
120R23 Sprocket (Taper Bushed) Features
120R23 Sprocket (Taper Bushed) Specifications

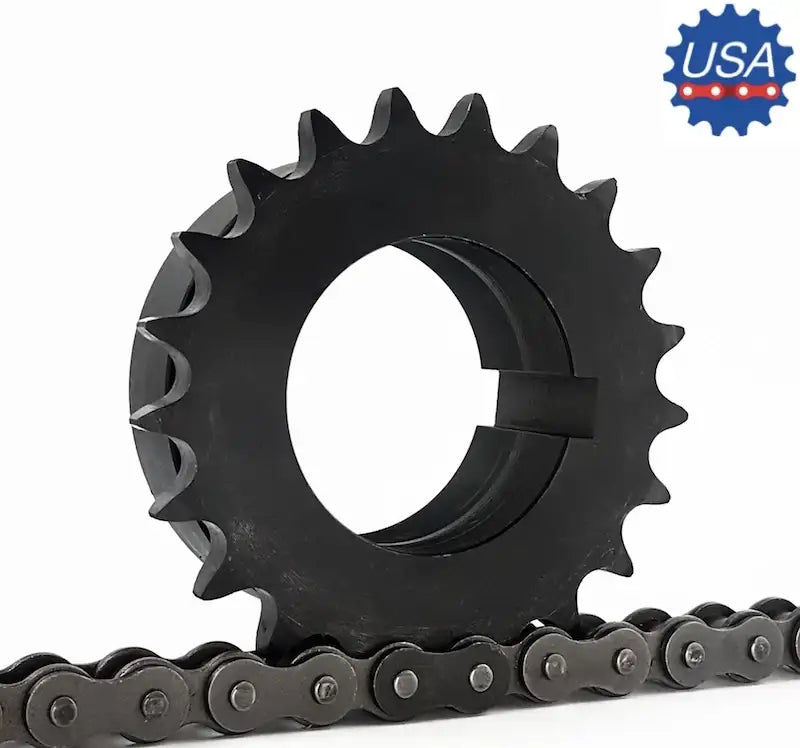

This 120R23 sprocket is a durable, high quality, and precision sprocket with 23 hardened teeth that is manufactured to accept a R1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #120 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 120R23 sprockets are bored to accept a R1 type taper bushing, which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we can do those as well within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.

120R23 Sprocket Dimensions

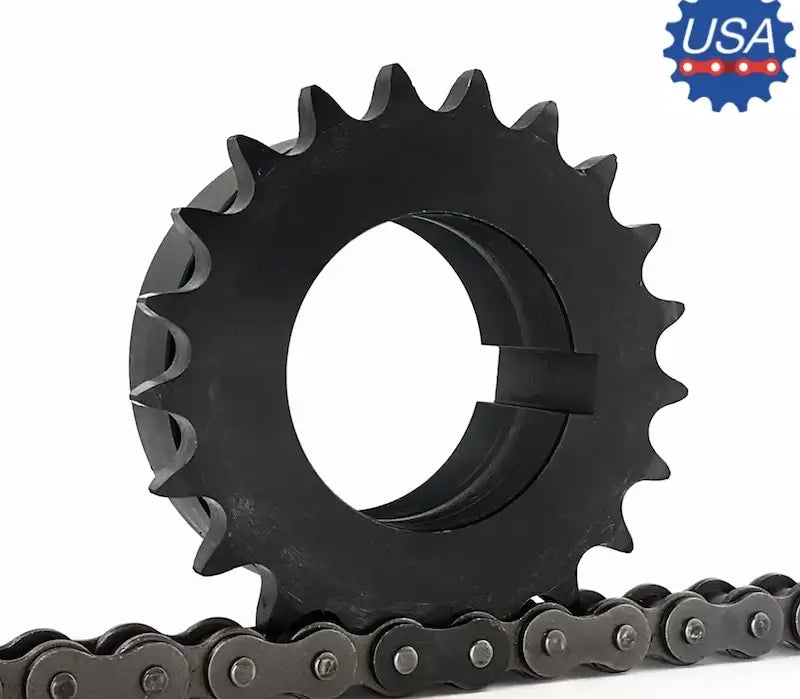

120R23 Sprocket (Taper Bushed)
  • Sprocket Size: 120R23
  • Tooth Count: 23
  • Bushing Size: R1
  • Outside Diameter: 11.810"
  • Pitch Diameter: 11.016"
  • Sprocket Type: 4
  • Maximum Bore: 3-3/4"
  • Dimension (OL): 3-5/32"
  • Dimension (L): 2-7/8"
  • Dimension (H): 5-3/8"
  • Dimension (P): 1-15/16"
  • Dimension (T): 0.924"
  • Bushing Weight: 7.5 LBS
  • Sprocket Weight: 24.3 LBS
