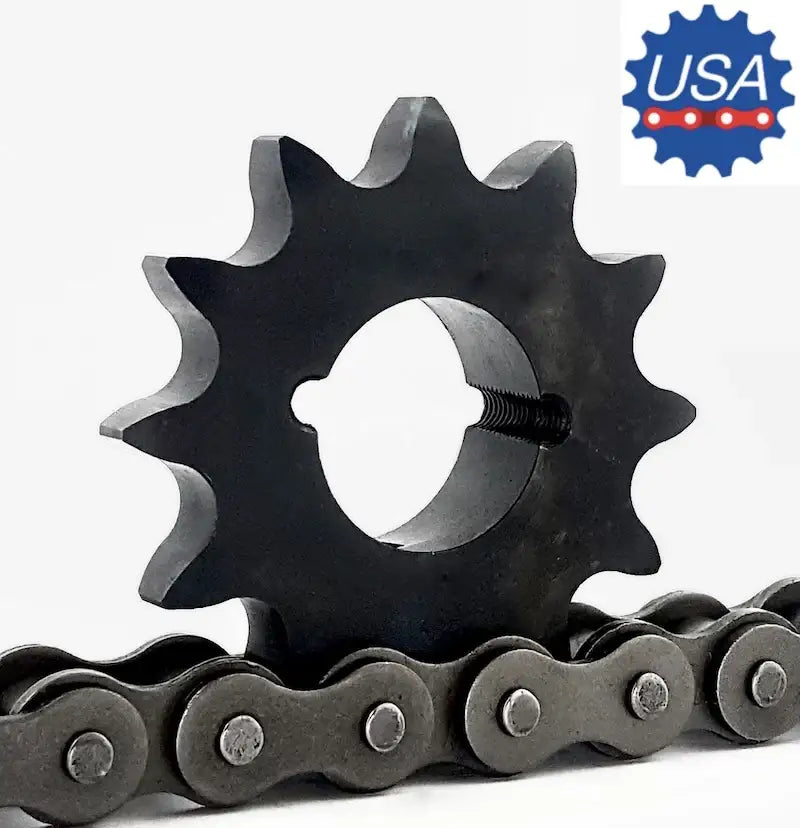

120BTB15 Sprocket (Taper Bushed)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #120 Roller Chain Sprockets > #120 BTB Type Sprockets

120BTB15 Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$219.99
SKU: 120BTB15-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714130149743" , "metafield_value":""}]
120BTB15 Sprocket (Taper Bushed) Features
120BTB15 Sprocket (Taper Bushed) Specifications
This 120BTB15 sprocket is a durable, high quality, and precision sprocket with 15 hardened teeth that is manufactured to accept a 2517 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #120 roller chain and sprocket which prevents premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 120BTB15 sprockets are manufactured to accept a 2517 size taper bushing which we also stock with a wide range of bore sizes. We also have sprockets with finished bore configurations, and if you are needing a custom bore sprocket we can do those as well. For more information or large inquiry request please contact us and we will be happy to assist you.

120BTB15 Sprocket Dimensions

120BTB15 Sprocket (Taper Bushed)
  • Sprocket Size: 120BTB15
  • Tooth Count: 15
  • Bushing Size: 2517
  • Outside Diameter: 7.957"
  • Pitch Diameter: 7.215"
  • Maximum Bore: 2-1/2"
  • Dimension (L): 1-3/4"
  • Dimension (C): 4-1/4"
  • Sprocket Type: B
  • Bushing Weight: 3.5 LBS
  • Sprocket Weight: 8.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!
  • Sprocket Size: 120BTB15
  • Tooth Count: 15
  • Bushing Size: 2517
  • Outside Diameter: 7.957"
  • Pitch Diameter: 7.215"
  • Maximum Bore: 2-1/2"
  • Dimension (L): 1-3/4"
  • Dimension (C): 4-1/4"
  • Sprocket Type: B
  • Bushing Weight: 3.5 LBS
  • Sprocket Weight: 8.0 LBS
