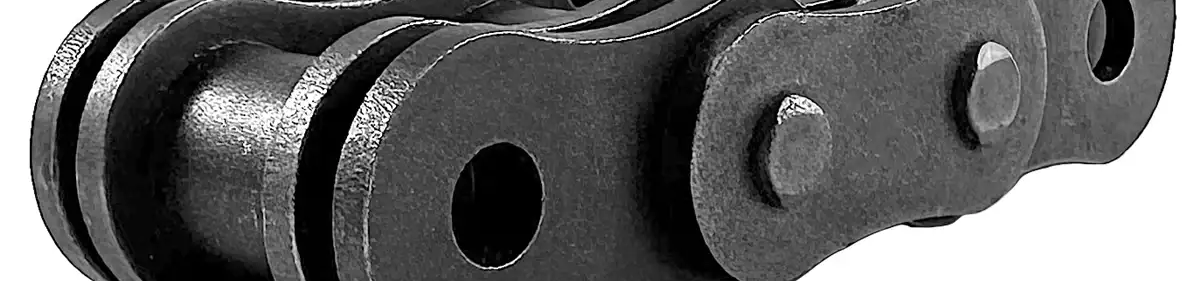

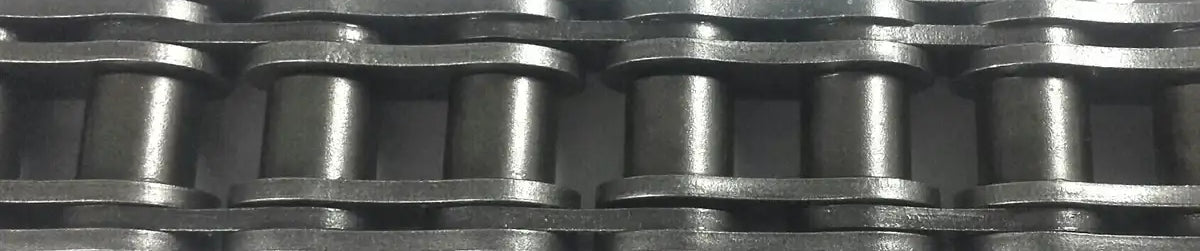

120 Double Capacity Roller Chain | 120DC Chain - 10FT
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

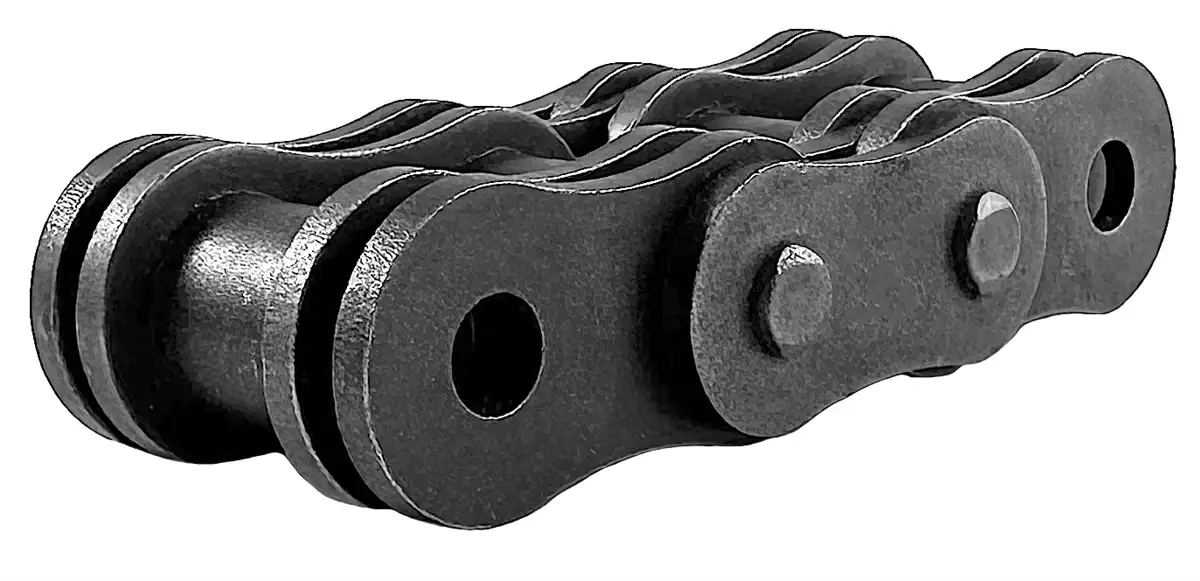

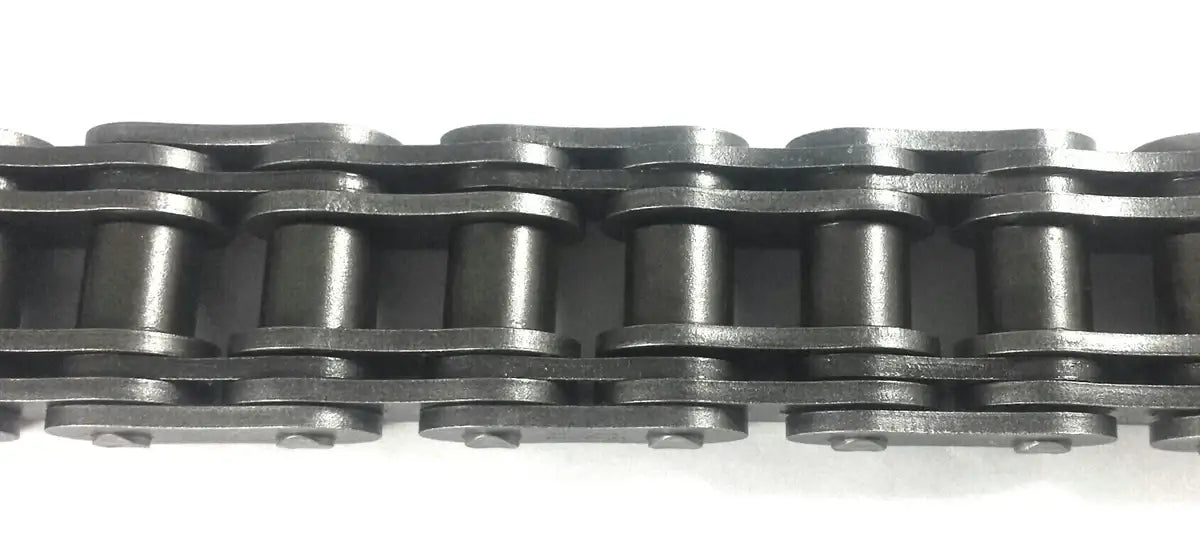

120DC double capacity roller chain is a high-strength 1.50" pitch chain that can operate on ANSI single-strand sprockets with roughly double the tensile and working capacity as a standard 120-1 roller chain. This unique chain is designed with double the amount of side plates and an enlarged pin giving it strength capabilities almost on par with a leaf chain with the flexibility of a roller chain. 120 double-capacity chain boasts an average ultimate tensile strength of 77,110 pounds with a tremendous dimensional-to-strength form factor of only 2.89" at its widest point (the connecting link)! What sets our 120 double-capacity chains apart from others is the use of top-grade material grades, special high-shock pins, wide-waste link plates, precision heat-treated components, shot-peened components, a specific factory pre-load, and solid round parts (bushings & rollers). Combining these processes, features, and premium raw materials results in a double-capacity roller chain that is highly capable and durable. We typically supply 120DC chains in lengths of 10ft, including one connecting link, but alternative lengths are available upon request. For additional information or to get a quote on our premium 120DC double-capacity roller chain, contact our customer support team, and we will be happy to assist you!
120DC Double Capacity Chain Dimensions
- Chain Size: 120DC
- Pitch (P): 1.500"
- Inside Width (W): 0.993"
- Roller Diameter (R): 0.875"
- Pin Diameter (D): 0.437"
- Dimension (L1): 1.36"
- Dimension (L2): 1.53"
- Chain Width (LR): 2.72"
- Connecting Link Width (LC): 2.89"
- Plate Height (H): 1.382"
- Plate Thickness (To): 0.188"
- Plate Thickness (Ti): 0.188"
- Average Ultimate Strength: 77,110 LBS
- Rated Working Load: 11,020 LBS
- Chain Weight: 6.35 LBS/ FT
- Chain Size: 120DC
- Pitch (P): 1.500"
- Inside Width (W): 0.875"
- Roller Diameter (R): 1.000"
- Pin Diameter (D): 0.437"
- Dimension (L1): 1.36"
- Dimension (L2): 1.53"
- Chain Width (LR): 2.72"
- Connecting Link Width (LC): 2.89"
- Plate Height (H): 1.382"
- Plate Thickness (To): 0.188"
- Plate Thickness (Ti): 0.188"
- Average Ultimate Strength: 77,110 LBS
- Rated Working Load: 11,020 LBS
- Chain Weight: 6.35 LBS/ FT
