111 Chain

111 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: 111-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

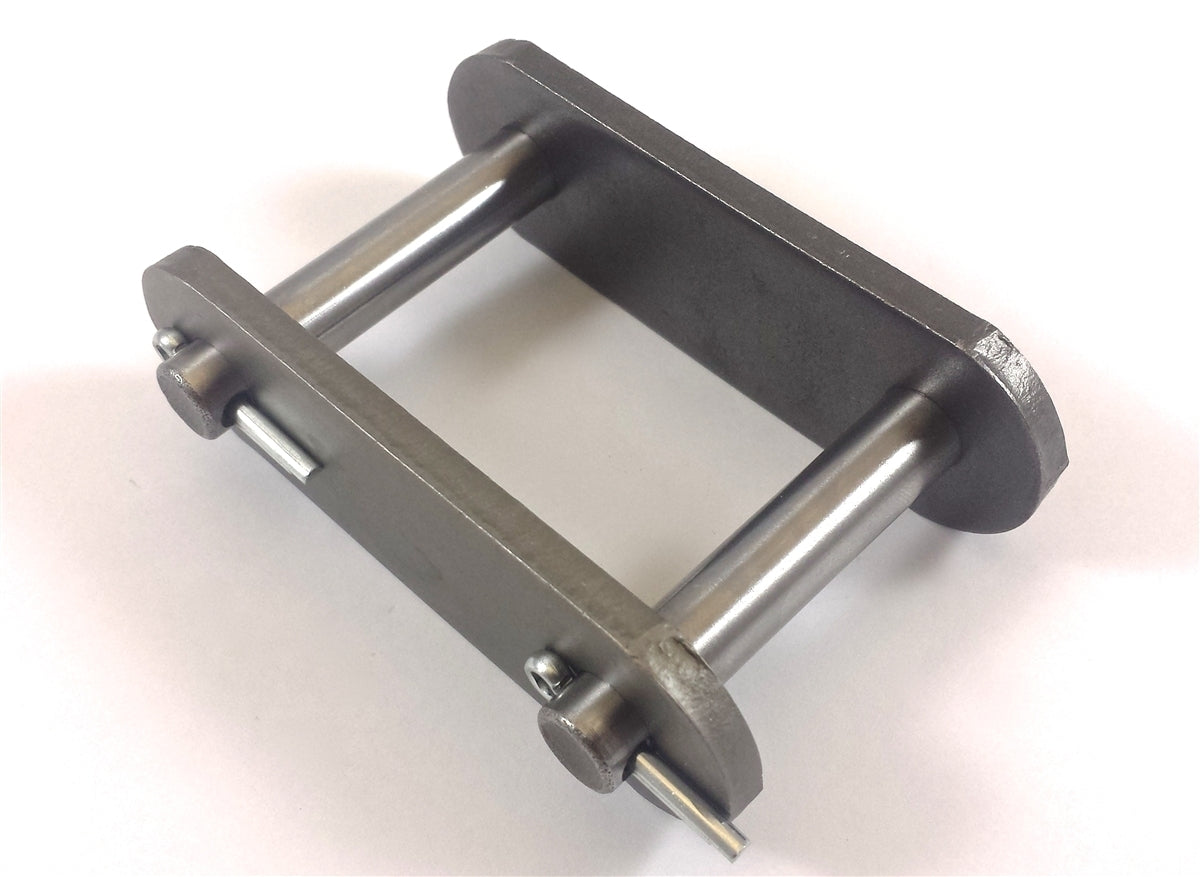

111 Steel Bushed Chain Connecting Link (Master Link)
111 Steel Bushed Chain Connecting Link (Master Link)
Login
111 Pin
111 Pin
Login
View full details
Description
Specification

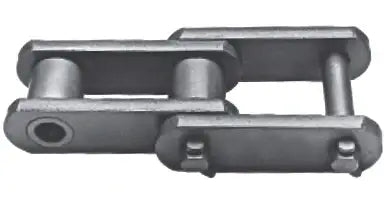

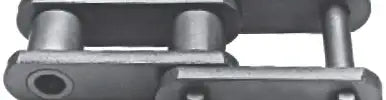

This 111 chain is a high quality, high strength steel bushed chain that is extremely durable. 111 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality 111 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: 111
  • Pitch: 4.760"
  • Overall Width (A): 5.06"
  • Dimension (B): 2.69"
  • Dimension (C): 2.38"
  • Inside Width (E): 2.63"
  • Bushing Diameter (D): 1.44"
  • Bushing Style: Double Flat
  • Bushing Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.75"
  • Pin Material: Carbon Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 2.00"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 50,000 LBS
  • Maximum Working Load: 8,850 LBS
  • Weight Per Foot: 10.2 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"

Feature

  • High Quality Chain
  • Extremely Durable
  • High Resistance to Abrasion
  • Ultra High Strength
