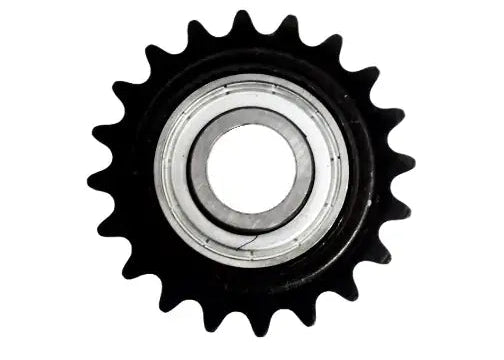

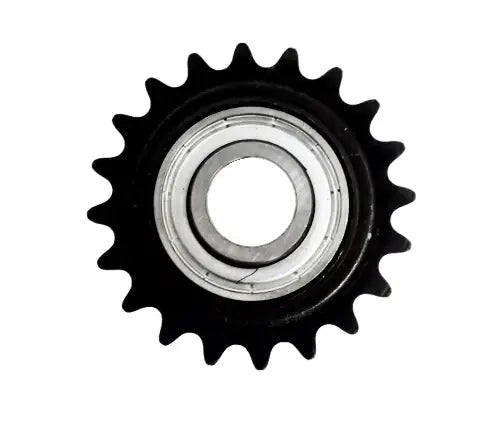

10BB15 Idler Sprocket With 16mm Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 10BB15-IDLER-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
10BB15 Idler Sprocket With 16mm Bore Features
10BB15 Idler Sprocket With 16mm Bore Specifications
10BB15 Idler Sprocket With 16mm Bore is manufactured for 10B roller chain and utilizes a premium-grade ball bearing as the idler component. Idler sprockets are utilized in most conveying systems and tensioning systems. We also offer other configurations of this 10BB15 idler sprocket such as different bore sizes, and tooth counts. For more information or to get a quote please contact us and we will be happy to assist you.
10BB15 Idler Sprocket Dimensions
- Sprocket Size: 10BB15
- Tooth Count: 15
- Chain Size: 10B-1
- Pitch: 15.875mm
- Dimension (OD): 86.4mm
- Dimension (N): 93.0mm
- Dimension (T): 9.1mm
- Dimension (ID): 16mm
- Dimension (BD): 40mm
- Dimension (H): 18.3mm
- Dimension (L): 12mm
- Sprocket Weight: 0.20 kG
- Sprocket Size: 10BB15
- Tooth Count: 15
- Chain Size: 10B-1
- Pitch: 15.875mm
- Dimension (OD): 86.4mm
- Dimension (N): 93.0mm
- Dimension (T): 9.1mm
- Dimension (ID): 16mm
- Dimension (BD): 40mm
- Dimension (H): 18.3mm
- Dimension (L): 12mm
- Sprocket Weight: 0.20 kG
