10475 Chain | Bar and Pin Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 10475-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
10475 Chain | Bar and Pin Chain Features
10475 Chain | Bar and Pin Chain Specifications
10475 bar and pin chain is manufactured for slow to moderate speed applications that require an ultra high strength chain. Our 10475 bar and pin chain is manufactured using the highest quality hardened alloy steel parts and components that are manufactured to high-precision tolerances for the best performance and long-term durability. It is manufactured to industry standard Engineer Class Chain dimensions so it directly interchanges with other brands. We also supply a full line of 10475 chain sprockets as well as custom fixtures/ attachments that are supplied on the chain upon requests. For more information or to get a quote please contact us and we will be happy to assist you.

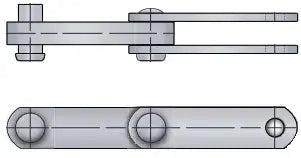

10475 Chain Dimensions
- Chain Size: 10475
- Chain Pitch (P): 4.00"
- Chain Style: 1
- Inside Width (W): 1.063"
- Pin Diameter (D): 1.125"
- Pin Length (L): 2.63"
- Pin Style: C
- Outer Sidebar Thickness (To): 0.500"
- Inner Sidebar Thickness (Ti): 1.000"
- Sidebar Height (H): 2.00"
- Average Ultimate Strength: 75,000 LBS
- Chain Weight: 11.0 LBS/ FT
- Chain Size: 10475
- Chain Pitch (P): 4.00"
- Chain Style: 1
- Inside Width (W): 1.063"
- Pin Diameter (D): 1.125"
- Pin Length (L): 2.63"
- Pin Style: C
- Outer Sidebar Thickness (To): 0.500"
- Inner Sidebar Thickness (Ti): 1.000"
- Sidebar Height (H): 2.00"
- Average Ultimate Strength: 75,000 LBS
- Chain Weight: 11.0 LBS/ FT
