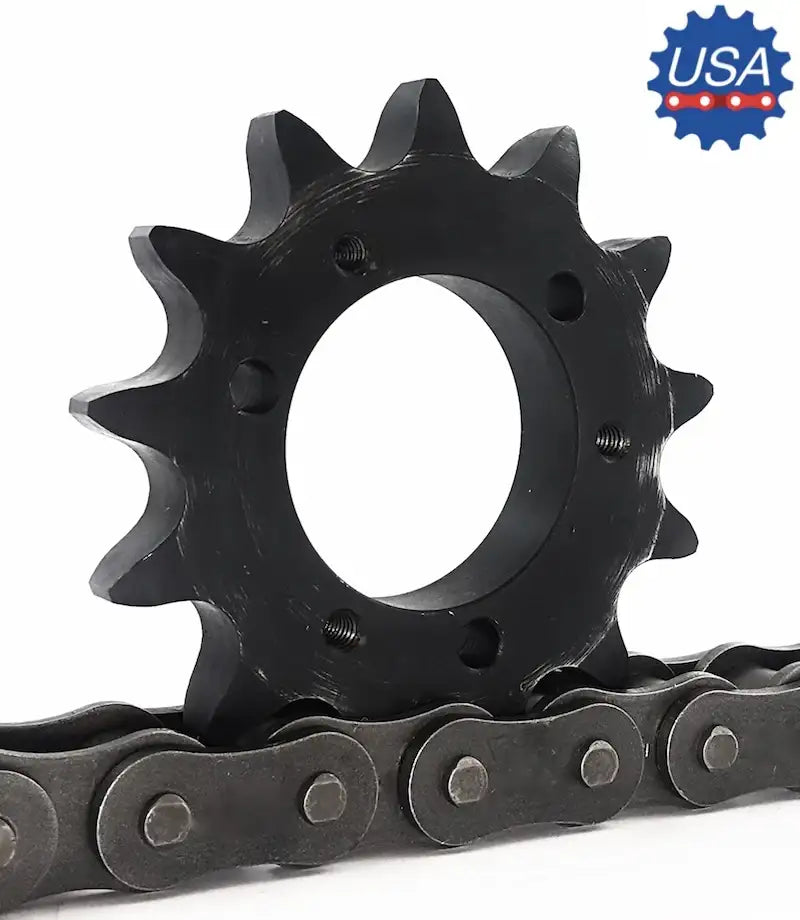

100SF16 Sprocket (QD Type)

100SF16 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$128.50
$128.50
In Stock
On Sale Sold out
Product Code: 100SF16-SPROCKET
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed
#100 Roller Chain - 10ft Box
#100 Roller Chain - 10ft Box
Login
General Duty Plus #100 Roller Chain - 10ft Box
General Duty Plus #100 Roller Chain - 10ft Box
$229.99
Login
Premium #100 Roller Chain - 10ft Box | Premier Series Chain
Premium #100 Roller Chain - 10ft Box | Premier Series Chain
$399.99
Login
View full details
Description
Specification
This 100SF16 sprocket is a durable, high quality, and precision sprocket with 16 hardened teeth that is manufactured to accept a SF bushing. Sprockets that have hardened teeth last longer, perform better, and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #100 roller chain and sprocket. Meeting strict ANSI Standards prevents premature wear or breakage as well as making it directly interchangeable with other brands. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early corrosion. 100SF16 sprockets are manufactured to accept a SF type QD bushing which, we also stock with a wide range of bore sizes. Additionally we offer sprockets with finished bore configurations, and if you need a custom sprocket we have the capabilities on providing them within a fast lead-time and at really great prices. For more information or large quantity request please contact us and we will be happy to assist you.

100SF16 Sprocket Dimensions
  • Sprocket Size: 100SF16
  • Tooth Count: 16
  • Bushing Size: SF
  • Outside Diameter: 7.030"
  • Pitch Diameter: 6.407"
  • Type: B
  • Dimension (L1): 2-15/16"
  • Dimension (L2): 2-1/4"
  • Dimension (C): 4-5/8"
  • Dimension (Y): 1-19/64"
  • Dimension (G): 9/16"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.692"
  • Bushing Weight: 3.0 LBS
  • Sprocket Weight: 5.6 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Manufactured Using High-Quality Steel
  • Fully Meets ANSI Standards
  • Black Oxide Coated For Corrosion Resistance
  • Directly Interchanges With Other Manufactures
  • Extremely Durable Construction With High-Performance
Featured image
  • Sprocket Size: 100SF16
  • Tooth Count: 16
  • Bushing Size: SF
  • Outside Diameter: 7.030"
  • Pitch Diameter: 6.407"
  • Type: B
  • Dimension (L1): 2-15/16"
  • Dimension (L2): 2-1/4"
  • Dimension (C): 4-5/8"
  • Dimension (Y): 1-19/64"
  • Dimension (G): 9/16"
  • Dimension (X): 1-1/4"
  • Dimension (T): 0.692"
  • Bushing Weight: 3.0 LBS
  • Sprocket Weight: 5.6 LBS
