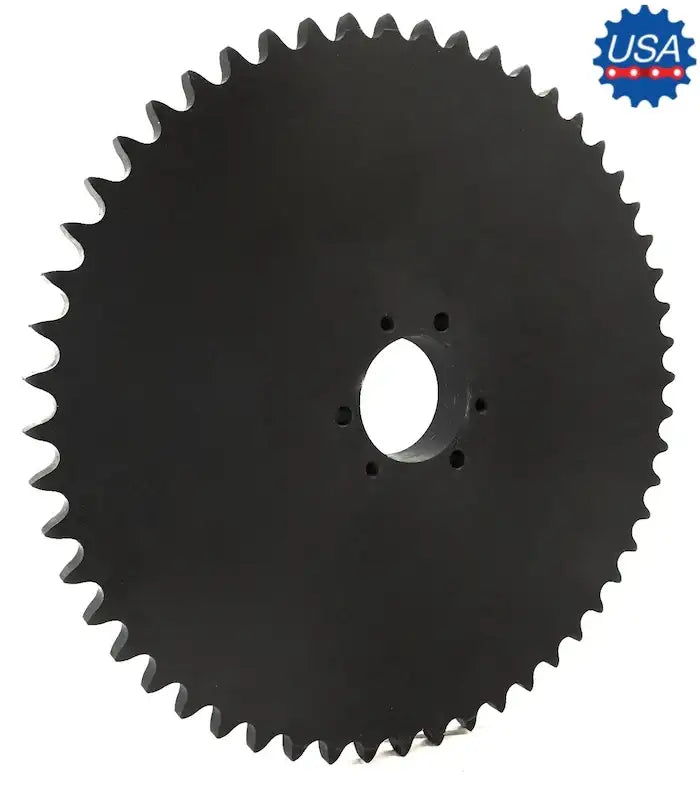

100E60 Sprocket (QD Type)

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #100 Roller Chain Sprockets > #100 E Type Sprockets

100E60 Sprocket (QD Type)

Note: Custom Cut to Length Chain Also Available
$906.99
SKU: 100E60-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714103050607" , "metafield_value":""}]
100E60 Sprocket (QD Type) Features
100E60 Sprocket (QD Type) Specifications
This 100E60 sprocket is a durable, high quality, and precision 60 tooth sprocket that is manufactured to accept a E bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #100 roller chain and sprocket, thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and prevents early rust build up. 100E60 sprockets are made to accept a E size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.


100E60 Sprocket Dimensions

100E60 Sprocket (QD Type)
  • Sprocket Size: 100E60
  • Tooth Count: 60
  • Bushing Size: E
  • Outside Diameter: 24.600"
  • Pitch Diameter: 23.884"
  • Type: C
  • Dimension (L1): 2-5/8"
  • Dimension (L2): 2-15/16"
  • Dimension (C): 6"
  • Dimension (Y): 7/8"
  • Dimension (P): 1-1/16"
  • Dimension (G): 15/16"
  • Dimension (X): 1-5/8"
  • Dimension (T): 0.692"
  • Bushing Weight: 10.0 LBS
  • Sprocket Weight: 74.0 LBS

  • Sprocket Size: 100E60
  • Tooth Count: 60
  • Bushing Size: E
  • Outside Diameter: 24.600"
  • Pitch Diameter: 23.884"
  • Type: C
  • Dimension (L1): 2-5/8"
  • Dimension (L2): 2-15/16"
  • Dimension (C): 6"
  • Dimension (Y): 7/8"
  • Dimension (P): 1-1/16"
  • Dimension (G): 15/16"
  • Dimension (X): 1-5/8"
  • Dimension (T): 0.692"
  • Bushing Weight: 10.0 LBS
  • Sprocket Weight: 74.0 LBS
