100B20SS Stainless Steel Sprocket

Power Transmission > Sprockets > Stainless Steel Sprockets > #100 Stainless Steel Sprockets

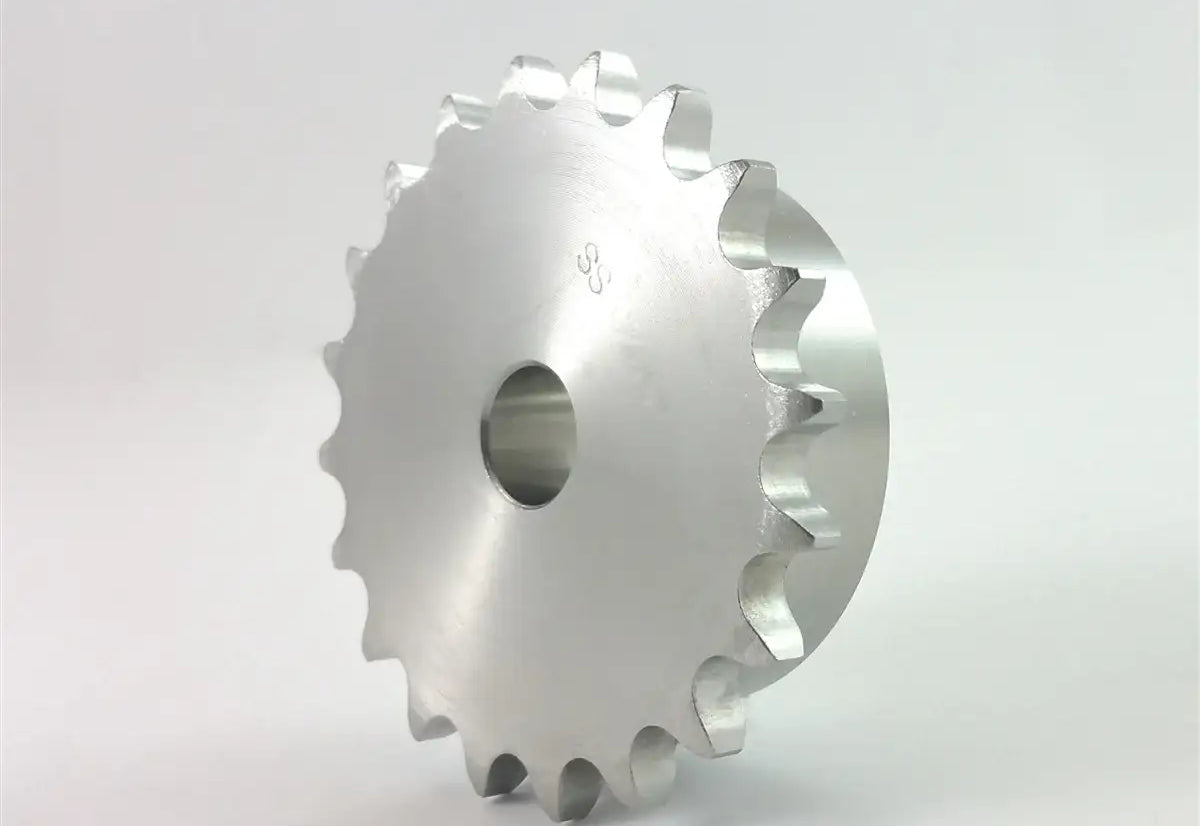

100B20SS Stainless Steel Sprocket

Note: Custom Cut to Length Chain Also Available
SKU: 100B20SS-SPROCKET
Only 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714096824687" , "metafield_value":""}]
100B20SS Stainless Steel Sprocket Features
100B20SS Stainless Steel Sprocket Specifications
This 100B20SS stainless steel sprocket is manufactured to ANSI specifications and is constructed out of 304-grade stainless steel for corrosion resistance, strength, durability, and to be able to work in low to high temperature environments. This sprocket has 20 teeth, is manufactured for #100 stainless steel roller chain (which we also offer), and is an B-Hub construction with a 1-5/16" stock bore. We can supply these sprockets bored to size if needed and as an A-Plate Style or even C-Hub (hub on both sides) style, we also have other grades of stainless steel such as 316-Grade. We offer some of the best pricing in the industry without sacrificing quality or customer service! For pricing and availability on 100B20SS sprocket or any of the other products we offer please contact us and we will be happy to assist you.

100B20 Stainless Steel Sprocket Dimensions

100B20SS Stainless Steel Sprocket
  • Sprocket Size: 100B20SS
  • Tooth Count: 20
  • Outside Diameter: 8.640"
  • Sprocket Type: B-Hub
  • Stock Bore: 1-15/16"
  • Recommended Maximum Bore: 3"
  • Hub Diameter: 4-1/2"
  • Length Thru Bore: 2"
  • Weight: 14.2 LBS
  • Sprocket Size: 100B20SS
  • Tooth Count: 20
  • Outside Diameter: 8.640"
  • Sprocket Type: B-Hub
  • Stock Bore: 1-15/16"
  • Recommended Maximum Bore: 3"
  • Hub Diameter: 4-1/2"
  • Length Thru Bore: 2"
  • Weight: 14.2 LBS
