Premium 100 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

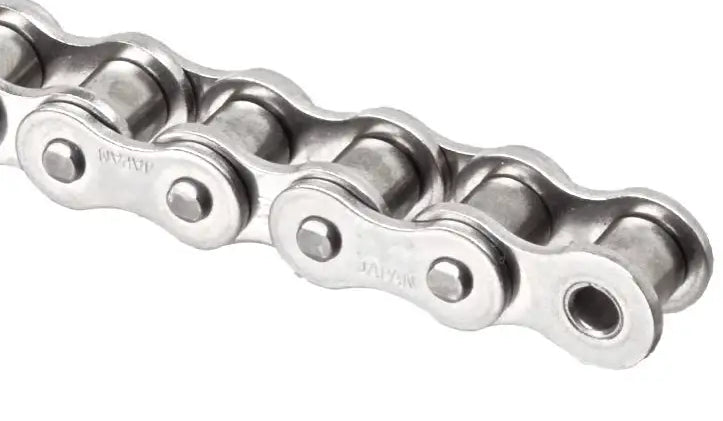

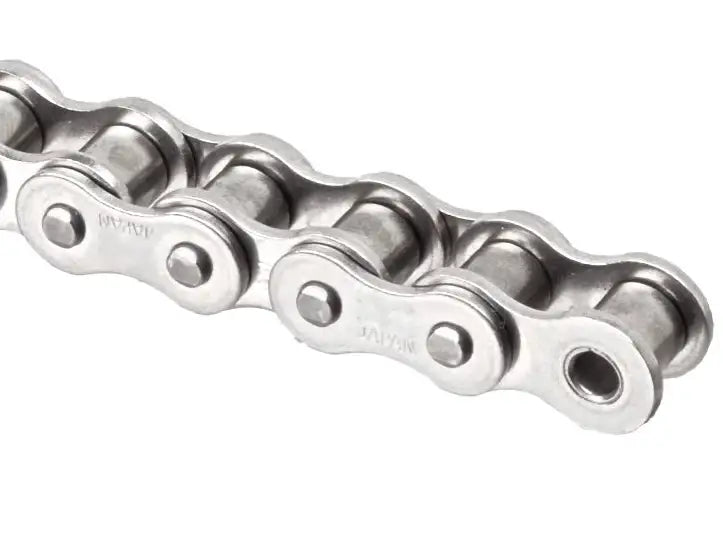

Our premium 100 stainless steel roller chain is a 1-1/4" pitch roller chain constructed from top-quality 304-grade stainless steel and conforms to ANSI B29.1 dimensional standards. Additionally, this chain features high-precision components and has a tensile strength of 12,800 lbs. 100 stainless steel roller chains can operate in food-grade, corrosive, and abrasive environments within a broad temperature range of -200 to +700 degrees Fahrenheit. This 100SS stainless chain sets the bar in terms of quality, performance, and operating life. We also supply 100 stainless steel sprockets and other supporting components! For additional information or to get a quote on our premium 100 stainless steel roller chain, contact our customer support team, and we will gladly assist you!
100 Stainless Steel Chain Dimensions
- Part #: 100SS
- Pitch (P): 1.250"
- Roller Width (R): 0.750"
- Roller Diameter (D): 0.750"
- Overall Width (W): 1.612"
- Connecting Link Overall Width (X): 1.708"
- Plate Height (H): 1.188"
- Plate Thickness (T): 0.157"
- Pin Diameter (L): 0.375"
- Tensile Strength: 12,900 LBS
- Working Load: 583 LBS
- Weight Per Foot: 2.65 LBS
- Part #: 100SS
- Pitch (P): 1.250"
- Roller Width (R): 0.750"
- Roller Diameter (D): 0.750"
- Overall Width (W): 1.612"
- Connecting Link Overall Width (X): 1.708"
- Plate Height (H): 1.188"
- Plate Thickness (T): 0.157"
- Pin Diameter (L): 0.375"
- Tensile Strength: 12,900 LBS
- Working Load: 583 LBS
- Weight Per Foot: 2.65 LBS
