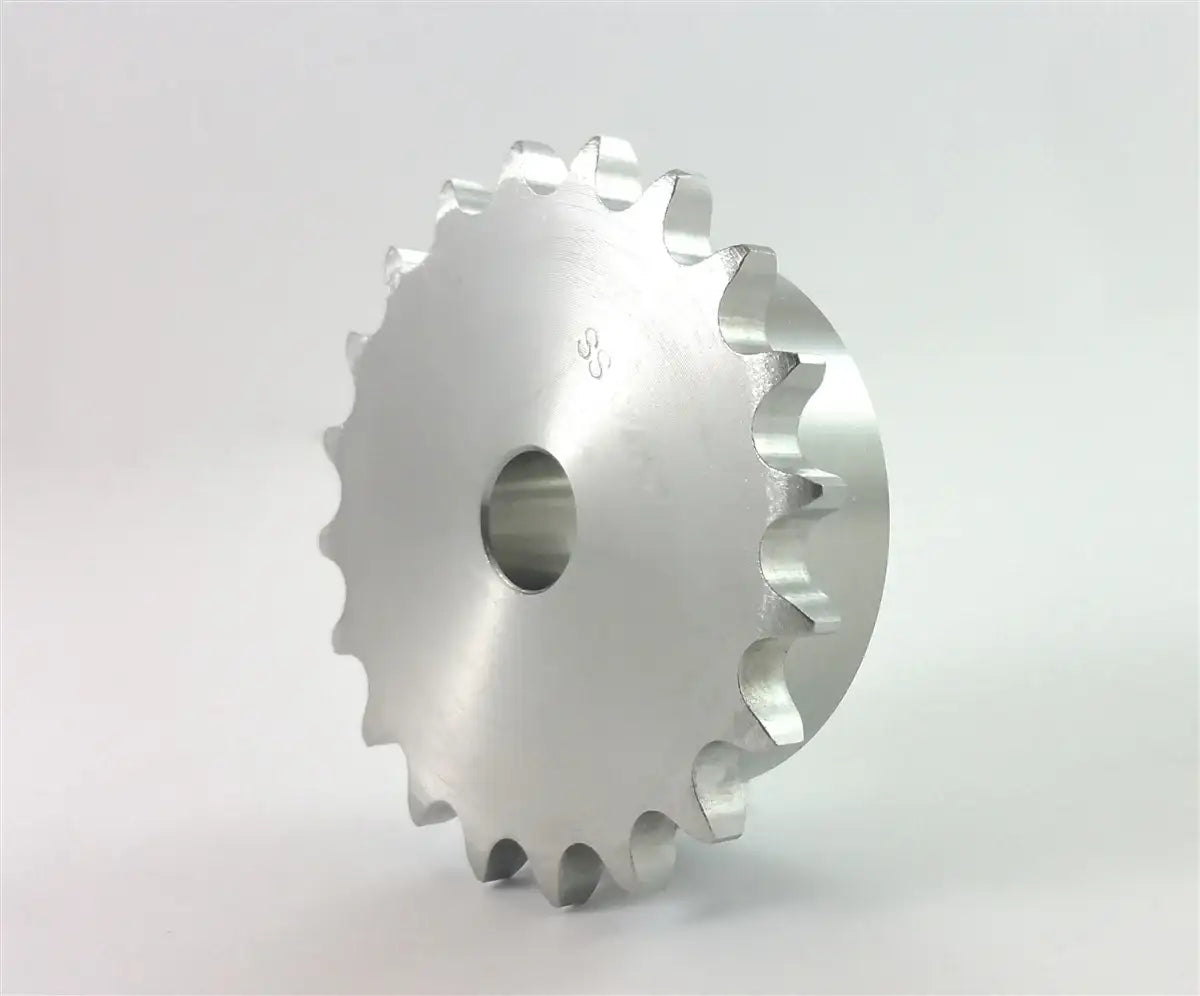

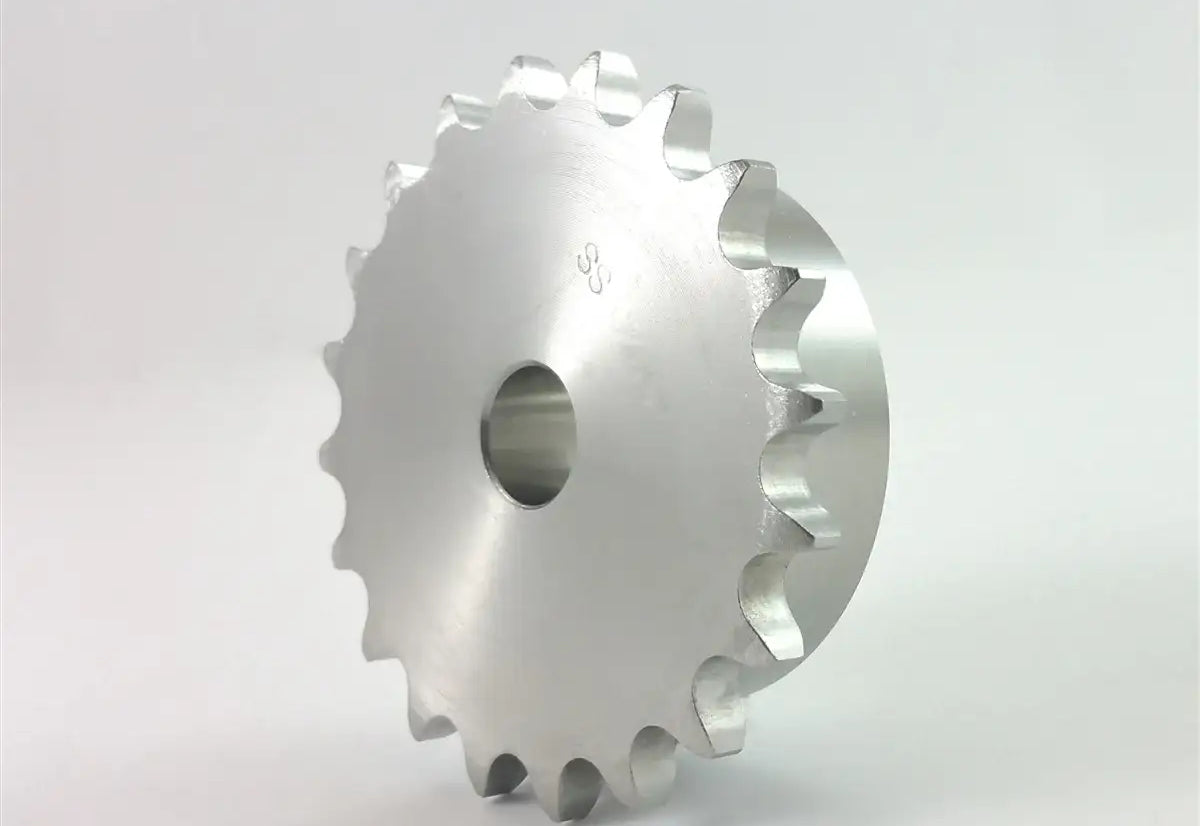

100B19SS Stainless Steel Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: 100B19SS-SPROCKET
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
100B19SS Stainless Steel Sprocket Features
100B19SS Stainless Steel Sprocket Specifications
This 100B19SS stainless steel sprocket is manufactured to ANSI specifications and is constructed out of 304-grade stainless steel for corrosion resistance, strength, durability, and to be able to work in low to high temperature environments. This sprocket has 19 teeth, is manufactured for #100 stainless steel roller chain (which we also offer), and is an B-Hub construction with a 1-5/16" stock bore. We can supply these sprockets bored to size if needed and as an A-Plate Style or even C-Hub (hub on both sides) style, we also have other grades of stainless steel such as 316-Grade. We offer some of the best pricing in the industry without sacrificing quality or customer service! For pricing and availability on 100B19SS sprocket or any of the other products we offer please contact us and we will be happy to assist you.
100B19 Stainless Steel Sprocket Dimensions
- Sprocket Size: 100B19SS
- Tooth Count: 19
- Outside Diameter: 8.240"
- Sprocket Type: B-Hub
- Stock Bore: 1-15/16"
- Recommended Maximum Bore: 3"
- Hub Diameter: 4-1/2"
- Length Thru Bore: 2"
- Weight: 13.1 LBS
- Sprocket Size: 100B19SS
- Tooth Count: 19
- Outside Diameter: 8.240"
- Sprocket Type: B-Hub
- Stock Bore: 1-15/16"
- Recommended Maximum Bore: 3"
- Hub Diameter: 4-1/2"
- Length Thru Bore: 2"
- Weight: 13.1 LBS
