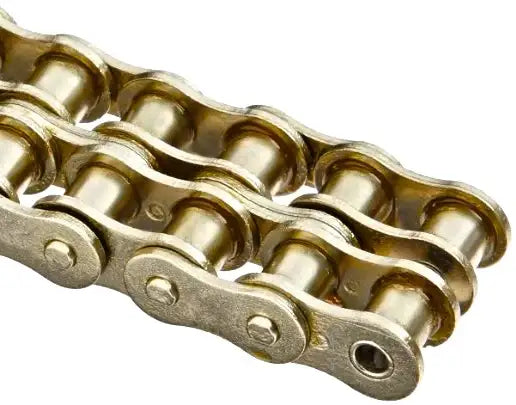

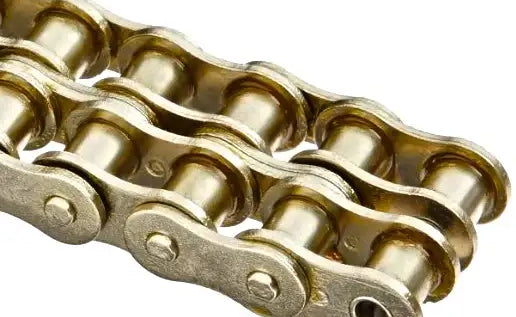

#100-2 Nickel Plated Roller Chain

Roller Chain > Roller Chain by Size > #100 Roller Chain

#100-2 Nickel Plated Roller Chain

Note: Custom Cut to Length Chain Also Available
SKU: 100-2-NICKEL-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714091352431" , "metafield_value":""}]
#100-2 Nickel Plated Roller Chain Features
#100-2 Nickel Plated Roller Chain Specifications
This #100-2 nickel plated roller chain offers high strength, durability, great performance, and conforms to all ANSI standards. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain will not hold up. #100-2 nickel plated roller chain will run on standard #100-2 sprockets and has the same dimensions as #100-2 roller chain. Additionally we offer a full line of #100-2 attachments, sprockets, and accessories!

Dimensions:
#100-2 Nickel Plated Roller Chain
  • Chain Size: 100-2NP
  • Pitch (P): 1.250"
  • Roller Width (W): 0.750"
  • Roller Diameter (R): 0.750"
  • Plate Height (H): 1.165"
  • Plate Thickness (T): 0.156"
  • Pin Diameter (D): 0.375"
  • Chain Overall Width (F): 2.970"
  • Connecting Link Overall Width: 3.075"
  • Weight Per Foot: 5.28 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: 100-2NP
  • Pitch (P): 1.250"
  • Roller Width (W): 0.750"
  • Roller Diameter (R): 0.750"
  • Plate Height (H): 1.165"
  • Plate Thickness (T): 0.156"
  • Pin Diameter (D): 0.375"
  • Chain Overall Width (F): 2.970"
  • Connecting Link Overall Width: 3.075"
  • Weight Per Foot: 5.28 LBS
