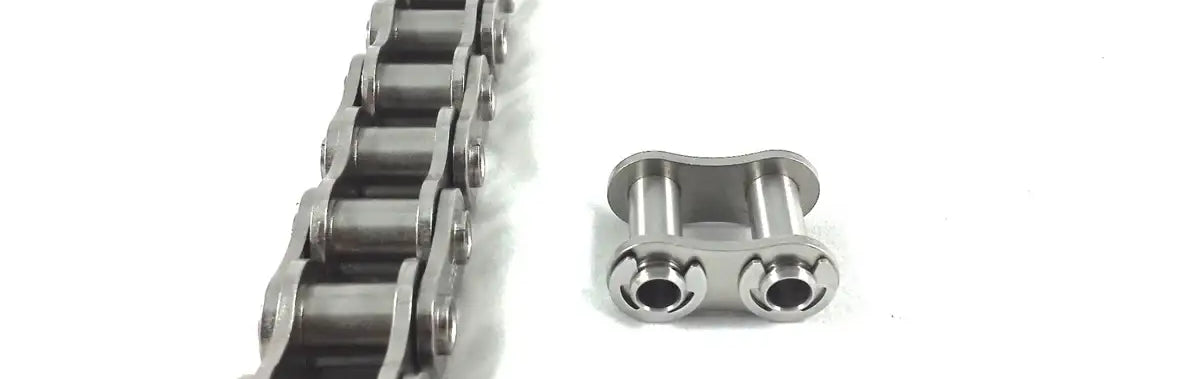

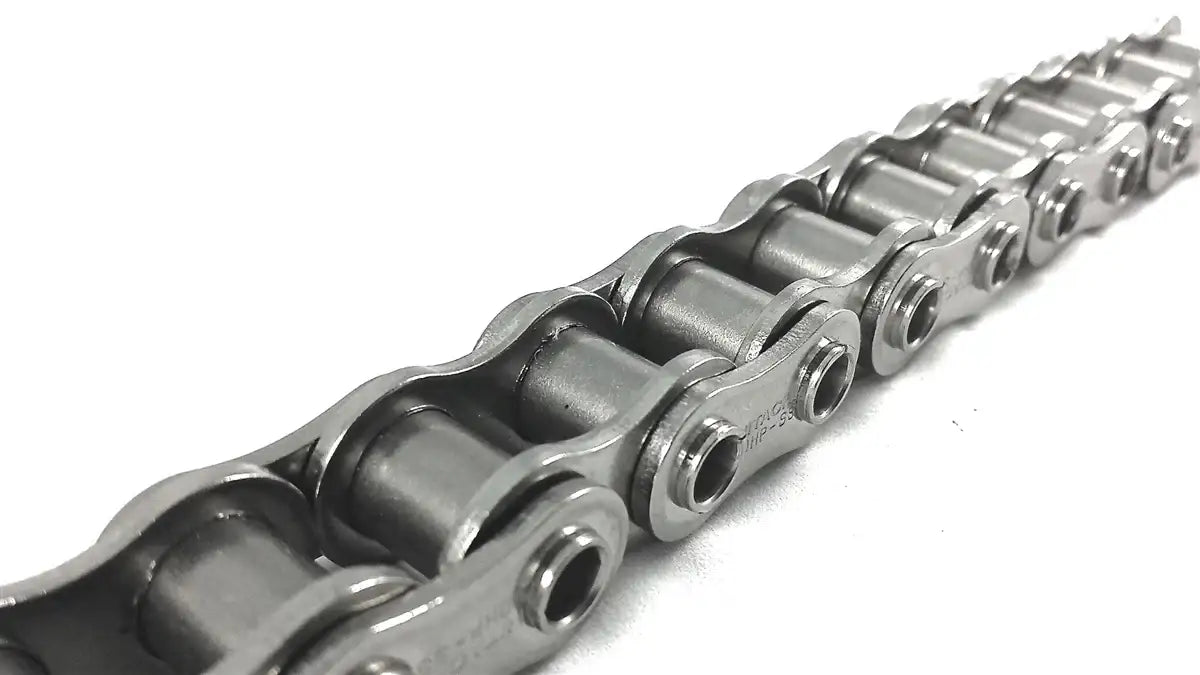

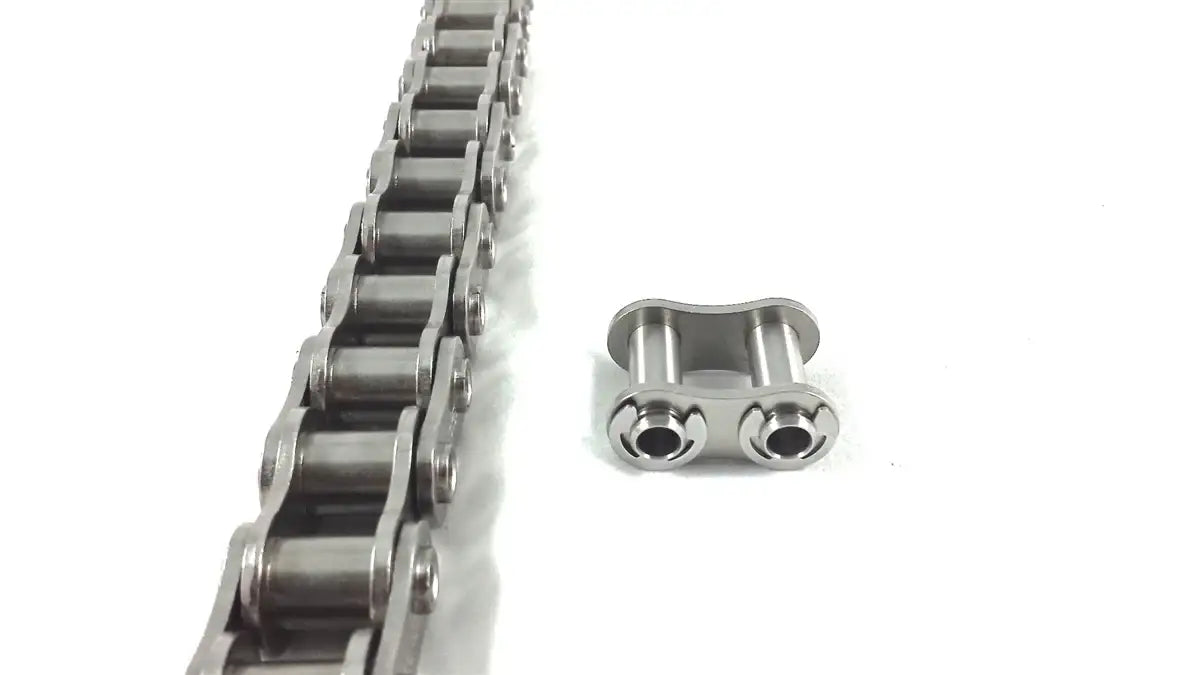

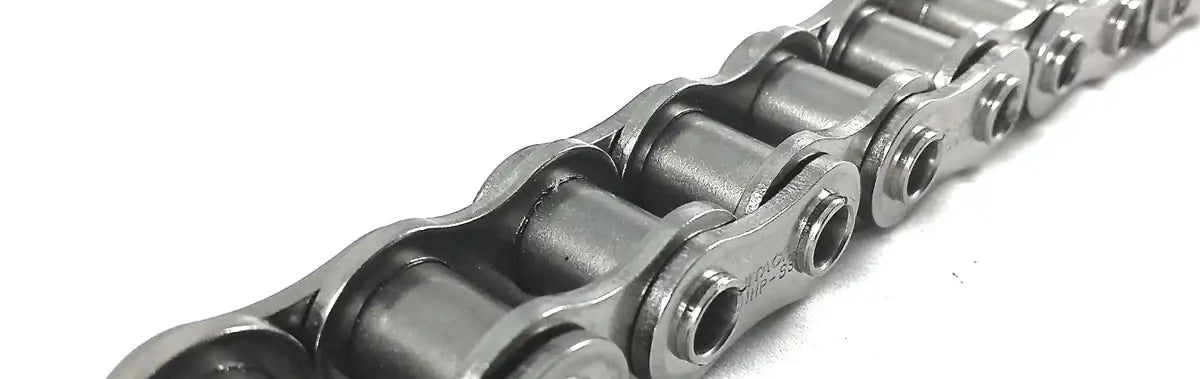

Metric 08B Stainless Steel Hollow Pin Roller Chain - 10ft Box

Metric 08B stainless steel hollow pin roller chain is manufactured in accordance to ISO 606B, BS228 British, and DIN8187 German manufacturing standards. Our 08BHPSS hollow pin stainless stele roller chain utilizes precision components, a solid roller (seamless) design, and is manufactured from high-quality 304-grade stainless steel. 304SS is a highly anti-corrosive material with a very low magnetic pull, its also capable of operating in very low to very high temperatures without degrading the working and performance capacity of the chain. The hollow pin design makes the chain capable of having attachments fastened through its holes (hollow pins) for conveying and elevating applications.

08BHP Stainless Steel Dimensions

• Pitch (P): 12.7mm
• Width Between Inner Plates (b1): 9.5mm
• Roller Diameter (d1): 8.51mm
• Pin Diameter (d2): 6.65mm
• Hollow Pin Inner Diameter (d6): 4mm
• Pin Length (b4): 19mm
• Connecting Link Added Width (b7): 1.5mm
• Total Inner Link Width (b2): 13.8mm
• Plate Thickness (Ti/ To) 1.7mm
• Inner Plate Height (h2): 11.8mm
• Weight: 0.17 kG/ ft

08B stainless steel hollow pin chain is supplied as 10ft boxes that include a connecting link. For additional information or to get a quote please contact us and we will be happy to assist you.
