Power Transmission > Sprockets > Metric Roller Chain Sprockets > 08B Chain Sprockets

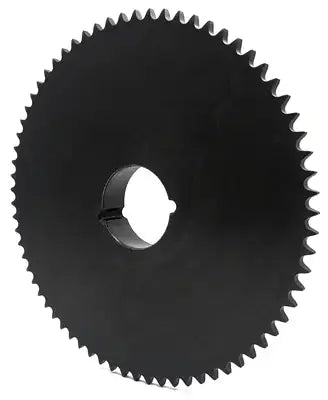

08BTB96 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: 08BTB96-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
08BTB96 Sprocket (Taper Bushed) Features
08BTB96 Sprocket (Taper Bushed) Specifications
This 08BTB96 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 2012 taper bushing Our 08BTB96 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our 08BTB96 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 96 tooth sprocket, we also stock a high-quality 08B roller chain, 2012 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed 08BTB96 sprockets, please contact us and one of our sales team members will be happy to assist you.
08BTB96 Sprocket Dimensions
- Sprocket Size: 08BTB96
- Tooth Count: 96
- Pitch Diameter: 388.15mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Length Thru Bore (L): 31.75mm
- Hub Diameter (C): 90mm
- Sprocket Weight: 6.88 kG
- Bushing Weight: 0.77 kG
- Sprocket Size: 08BTB96
- Tooth Count: 96
- Pitch Diameter: 388.15mm
- Bushing Size: 2012
- Maximum Bushing Bore: 50.80mm
- Length Thru Bore (L): 31.75mm
- Hub Diameter (C): 90mm
- Sprocket Weight: 6.88 kG
- Bushing Weight: 0.77 kG
