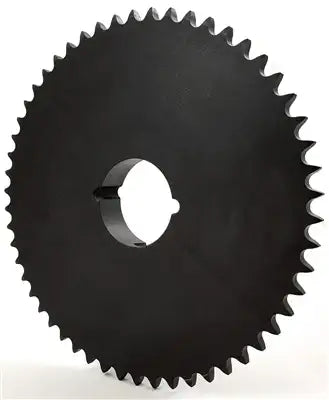

08BTB57 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: 08BTB57-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
08BTB57 Sprocket (Taper Bushed) Features
08BTB57 Sprocket (Taper Bushed) Specifications
This 08BTB57 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 1610 taper bushing. Our 08BTB57 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our 08BTB57 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 57 tooth sprocket, we also stock a high-quality 08B roller chain, 1610 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed 08BTB57 sprockets, please contact us and one of our sales team members will be happy to assist you.
08BTB57 Sprocket Dimensions
- Sprocket Size: 08BTB57
- Tooth Count: 57
- Pitch Diameter: 230.54mm
- Bushing Size: 1610
- Maximum Bushing Bore: 41.28mm
- Length Thru Bore (L): 25.40mm
- Hub Diameter (C): 76mm
- Sprocket Weight: 2.63 kG
- Bushing Weight: 0.41 kG
- Sprocket Size: 08BTB57
- Tooth Count: 57
- Pitch Diameter: 230.54mm
- Bushing Size: 1610
- Maximum Bushing Bore: 41.28mm
- Length Thru Bore (L): 25.40mm
- Hub Diameter (C): 76mm
- Sprocket Weight: 2.63 kG
- Bushing Weight: 0.41 kG
