Power Transmission > Sprockets > Metric Roller Chain Sprockets > Metric Roller Chain Idler Sprockets

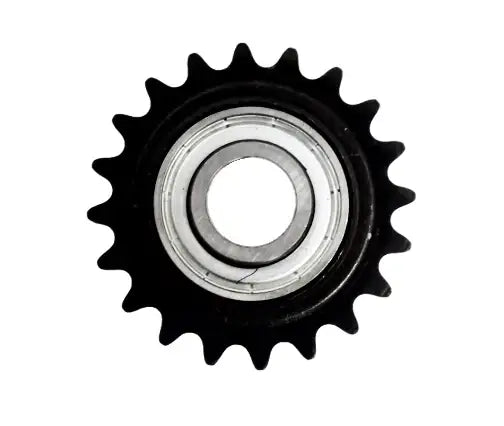

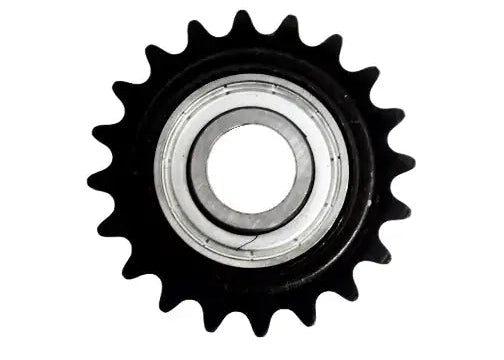

081BB18 Idler Sprocket With 16mm Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 081BB18-IDLER-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
081BB18 Idler Sprocket With 16mm Bore Features
081BB18 Idler Sprocket With 16mm Bore Specifications
081BB18 Idler Sprocket With 16mm Bore is manufactured for 081 roller chain and utilizes a premium-grade ball bearing as the idler component. Idler sprockets are utilized in most conveying systems and tensioning systems. We also offer other configurations of this 081BB18 idler sprocket such as different bore sizes, and tooth counts. For more information or to get a quote please contact us and we will be happy to assist you.
081BB18 Idler Sprocket Dimensions
- Sprocket Size: 081BB18
- Tooth Count: 18
- Chain Size: 081-1
- Pitch: 12.7mm
- Dimension (OD): 73.1mm
- Dimension (N): 78.9mm
- Dimension (T): 7.0mm
- Dimension (ID): 16mm
- Dimension (BD): 40mm
- Dimension (H): 18.3mm
- Dimension (L): 12mm
- Sprocket Weight: 0.20 kG
- Sprocket Size: 081BB18
- Tooth Count: 18
- Chain Size: 081-1
- Pitch: 12.7mm
- Dimension (OD): 73.1mm
- Dimension (N): 78.9mm
- Dimension (T): 7.0mm
- Dimension (ID): 16mm
- Dimension (BD): 40mm
- Dimension (H): 18.3mm
- Dimension (L): 12mm
- Sprocket Weight: 0.20 kG
