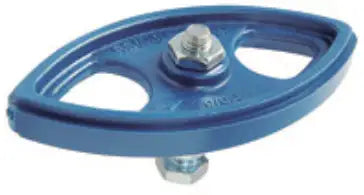

Rosta 06560003 #50-2 Chain Rider For - SE18 Tensioner
Note:
Custom Cut to Length Chain Also Available
SKU: 06560003-50-2-CHAIN-RIDER
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Rosta 06560003 #50-2 Chain Rider For - SE18 Tensioner Features
Rosta 06560003 #50-2 Chain Rider For - SE18 Tensioner Specifications
Rosta 06560003 #50-2 Chain Rider For SE18 Tensioners is made from high-quality POM-H and is designed for double-sided use. The maximum allowable speed for the chain rider is 59 inches per second. For more information or to get a quote please contact us and we will be happy to assist you!
Rosta 06560003 #50-2 Chain Rider Dimension
- Article Number: 06560003
- Type: P-5/8"-10D
- Works With ANSI Chain Size: 50-2
- Works With DIN 8187 Chain Size: 10B-2
- Dimension (W): M10
- Dimension (L): 70mm
- Dimension (X): 126mm
- Dimension (Y): 63mm
- Dimension (Z): 16.6mm
- Torque Hex Nut 0.5 d (Nm): 20
- Works With Tensioner Type: SE-18
- Adjustable Range (R) with SE: 34-46
- Weight: 0.17 kG
- Article Number: 06560003
- Type: P-5/8"-10D
- Works With ANSI Chain Size: 50-2
- Works With DIN 8187 Chain Size: 10B-2
- Dimension (W): M10
- Dimension (L): 70mm
- Dimension (X): 126mm
- Dimension (Y): 63mm
- Dimension (Z): 16.6mm
- Torque Hex Nut 0.5 d (Nm): 20
- Works With Tensioner Type: SE-18
- Adjustable Range (R) with SE: 34-46
- Weight: 0.17 kG
