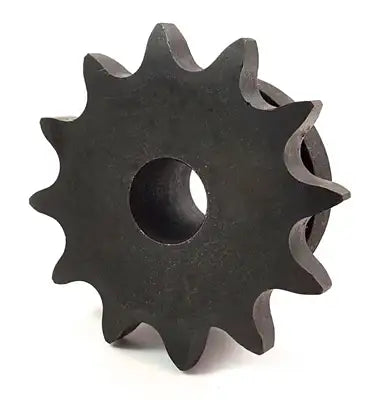

05B9 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 05B9-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
05B9 Sprocket With Stock Bore Features
05B9 Sprocket With Stock Bore Specifications
This 05B9 sprocket is a durable, high quality, and precision sprocket with 9 teeth. Something else that is notable about this 05B9 sprocket is that it fully meets all ISO Standards, which ensures proper contact between the 05B-1 roller chain and sprocket thus preventing premature wear or breakage. 05B9 sprockets with a stock bore come with the standard 6 millimeters inside diameter hole with no key-way or set screws and can be easily machine bored to custom sizes and include a key-way and set-screws. If you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or to get a formal quote please contact us and we will be happy to assist you.
05B9 Sprocket Dimensions
- Sprocket Size: 05B9
- Tooth Count: 9
- Pitch Diameter (PD): 23.39mm
- Outside Diameter (OD): 26.6mm
- Hub Diameter (H): 15mm
- Stock Bore (ID): 6mm
- Length Thru Bore (L): 12mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.02 kg
- Sprocket Size: 05B9
- Tooth Count: 9
- Pitch Diameter (PD): 23.39mm
- Outside Diameter (OD): 26.6mm
- Hub Diameter (H): 15mm
- Stock Bore (ID): 6mm
- Length Thru Bore (L): 12mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.02 kg
