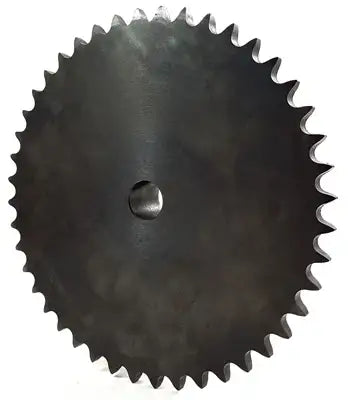

05B45 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 05B45-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
05B45 Sprocket With Stock Bore Features
05B45 Sprocket With Stock Bore Specifications
This 05B45 sprocket is a durable, high quality, and precision sprocket with 45 teeth. Something else that is notable about this 05B45 sprocket is that it fully meets all ISO Standards, which ensures proper contact between the 05B-1 roller chain and sprocket thus preventing premature wear or breakage. 05B45 sprockets with a stock bore come with the standard 12 millimeters inside diameter hole with no key-way or set screws and can be easily machine bored to custom sizes and include a key-way and set-screws. If you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or to get a formal quote please contact us and we will be happy to assist you.
05B45 Sprocket Dimensions
- Sprocket Size: 05B45
- Tooth Count: 45
- Pitch Diameter (PD): 114.69mm
- Outside Diameter (OD): 118.0mm
- Hub Diameter (H): 60mm
- Stock Bore (ID): 12mm
- Length Thru Bore (L): 20mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.88 kg
- Sprocket Size: 05B45
- Tooth Count: 45
- Pitch Diameter (PD): 114.69mm
- Outside Diameter (OD): 118.0mm
- Hub Diameter (H): 60mm
- Stock Bore (ID): 12mm
- Length Thru Bore (L): 20mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.88 kg
