05A78 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: 05A78-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
05A78 Sprocket Features
05A78 Sprocket Specifications

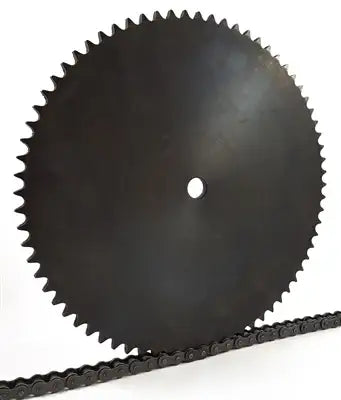

This 05A78 sprocket is a durable, high quality, and precision A-plate sprocket with 78 teeth that is manufactured out of high-quality steel. Something else that is notable about this sprocket is that it fully meets all ISO Standards, which ensures proper contact between the 05B-1 roller chain and sprocket thus preventing premature wear or breakage. 05A78 sprockets with a stock bore come with a 20 millimeter inside diameter plain hole and can be easily machine bored to custom sizes. If you are in need of a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information or to get a custom quote, please contact us and we will be happy to assist you.
05A78 Sprocket Dimensions
- Sprocket Size: 05A78
- Tooth Count: 78
- Outside Diameter (OD): 202.8mm
- Pitch Diameter (PD): 198.68mm
- Stock Bore (ID): 20mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.87 kg
- Sprocket Size: 05A78
- Tooth Count: 78
- Outside Diameter (OD): 202.8mm
- Pitch Diameter (PD): 198.68mm
- Stock Bore (ID): 20mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.87 kg
