05A22 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: 05A22-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
05A22 Sprocket Features
05A22 Sprocket Specifications

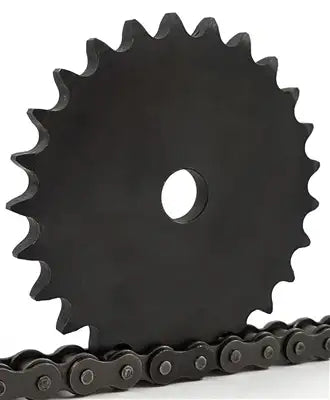

This 05A22 sprocket is a durable, high quality, and precision A-plate sprocket with 22 teeth that is manufactured out of high-quality steel. Something else that is notable about this sprocket is that it fully meets all ISO Standards, which ensures proper contact between the 05B-1 roller chain and sprocket thus preventing premature wear or breakage. 05A22 sprockets with a stock bore come with an 8 millimeter inside diameter plain hole and can be easily machine bored to custom sizes. If you are in need of a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information or to get a custom quote, please contact us and we will be happy to assist you.
05A22 Sprocket Dimensions
- Sprocket Size: 05A22
- Tooth Count: 22
- Outside Diameter (OD): 59.5mm
- Pitch Diameter (PD): 56.21mm
- Stock Bore (ID): 8mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.045 kg
- Sprocket Size: 05A22
- Tooth Count: 22
- Outside Diameter (OD): 59.5mm
- Pitch Diameter (PD): 56.21mm
- Stock Bore (ID): 8mm
- Tooth Thickness (T): 2.8mm
- Weight: 0.045 kg
