X458 Chain Sprockets
X458 chain is the most common rivetless drop forged chain in the industry. Utilized in applications like overhead trolley conveyors, car wash, wastewater, and much more! At USA Roller Chain we supply a complete line of standard and non-standard X458 sprockets. For additional information or to get a quote, contact our customer service team and, we will be happy to assist you!
X458 Sprocket Sizes
The chart below shows standard X458 chain sprocket sizes and tooth counts. Please note that we offer two tooth-profile styles of X-458 chain sprockets (style 1 & style 2), be sure to specify which style is needed or style 1 will be provided. Additionally, X458 sprockets can be supplied in other configurations such as; split, shear-pin, b-hub, and from materials like stainless steel or plastic.
|
Sprocket Size
|
Sprocket Type
|
Plate Thickness
|
Tooth Count
|
Stock Bore
|
Maximum Bore
|
Pitch Diameter
|
Hub Diameter
|
Length Thru Bore
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|

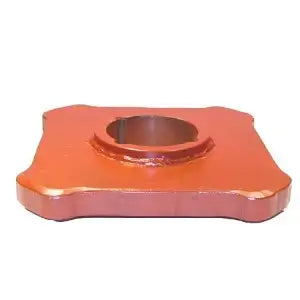

| X458A4 | A | 0.875" | 4 | 1.500" | -- | -- | -- | 0.875" | -- |
| X458A5 | A | 0.875" | 5 | 1.500" | -- | 13.045" | -- | 0.875" | 33.0 |
| X458A6 | A | 0.875" | 6 | 1.500" | -- | 15.575" | -- | 0.875" | 47.0 |
| X458A7 | A | 0.875" | 7 | 1.500" | -- | 18.115" | -- | 0.875" | 64.0 |
| X458A8 | A | 0.875" | 8 | 1.500" | -- | 20.662" | -- | 0.875" | 83.0 |
| X458A9 | A | 0.875" | 9 | 1.500" | -- | 23.214" | -- | 0.875" | 105.0 |
| X458A10 | A | 0.875" | 10 | 1.500" | -- | 25.768" | -- | 0.875" | 130.0 |
| X458A11 | A | 0.875" | 11 | 1.500" | -- | 28.325" | -- | 0.875" | 157.0 |
| X458A12 | A | 0.875" | 12 | 1.500" | -- | 30.883" | -- | 0.875" | 186.0 |
| X458C5 | C | 0.875" | 5 | 1.500" | 3.440" | 13.045" | 5.500" | 4.250" | 54.0 |
| X458C6 | C | 0.875" | 6 | 1.500" | 3.440" | 15.575" | 5.500" | 4.250" | 68.0 |
| X458C7 | C | 0.875" | 7 | 1.500" | 3.440" | 18.115" | 5.500" | 4.250" | 85.0 |
| X458C8 | C | 0.875" | 8 | 1.500" | 3.940" | 20.662" | 6.500" | 5.000" | 120.0 |
| X458C9 | C | 0.875" | 9 | 1.500" | 3.940" | 23.214" | 6.500" | 5.000" | 141.0 |
| X458C10 | C | 0.875" | 10 | 1.500" | 3.940" | 25.768" | 6.500" | 5.000" | 166.0 |
| X458C11 | C | 0.875" | 11 | 1.500" | 3.940" | 28.325" | 6.500" | 5.000" | 193.0 |
| X458C12 | C | 0.875" | 12 | 1.500" | 3.940" | 30.883" | 6.500" | 5.000" | 222.0 |
