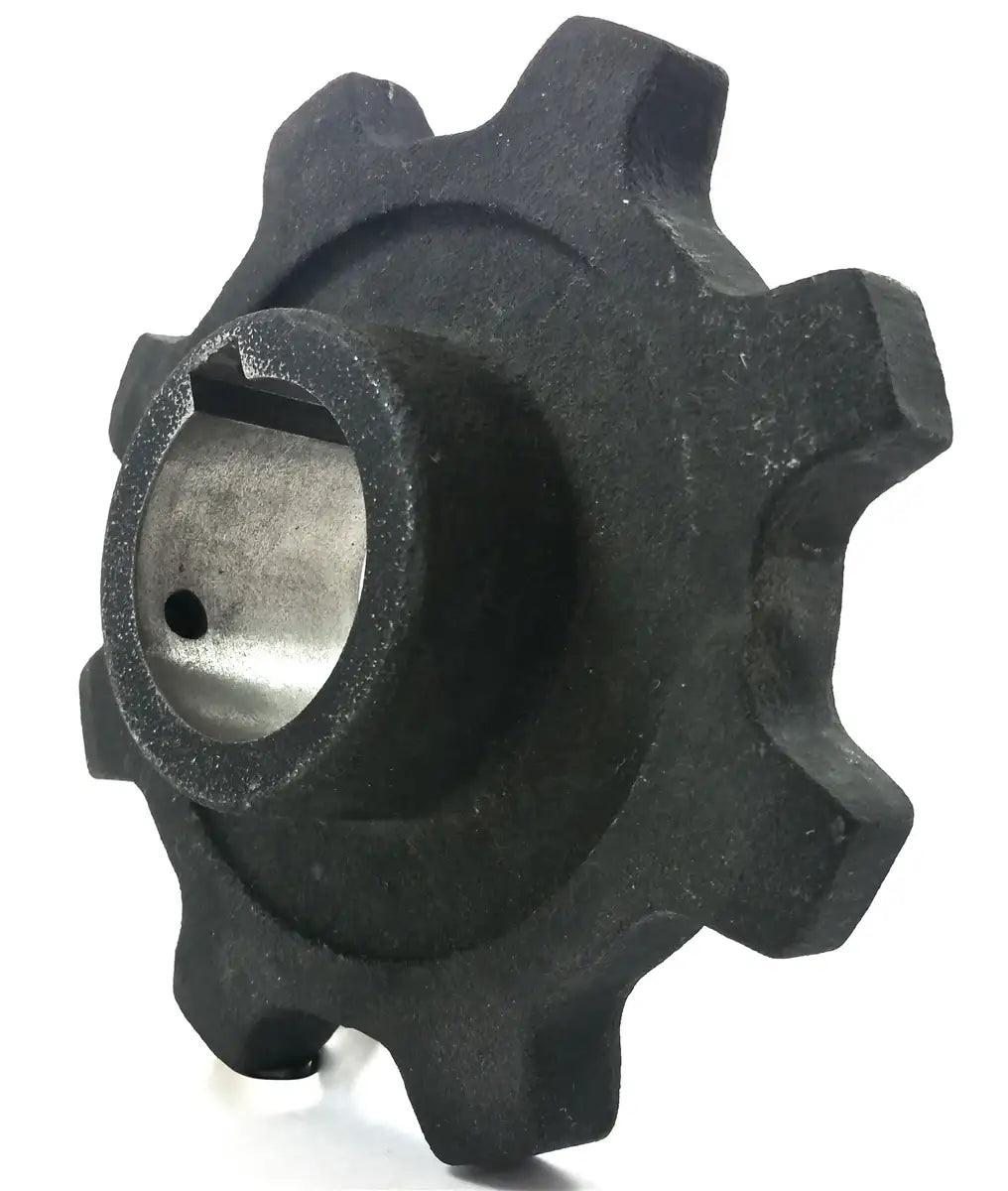

WH78-B20 Sprocket

This WH78 sprocket will work with both WR78 welded steel chain and WH78 welded steel chain. We can supply this sprocket manufactured out of mild steel or QT400 hardened steel and either solid construction, split to bolt, split for welding construction per request. Also we can supply this sprocket machined or precision hobbed for high-speed applications. Additionally, we can supply this sprocket as a brass, nylon or UHMW idler complete with grease grooves and grease fittings. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:
WH78-B20 Sprocket
  • Style: B-Hub
  • Number Of Teeth: 20
  • Pitch: 2.609"
  • Pitch Diameter: 16.680"
  • Shroud Diameter: 15.210"
  • Barrel Diameter: 0.875"
  • Tooth Face: 1.000"
  • Maximum Bore: 5.9375"
  • Compatible Chains: WR78, WH78, C188
