UCTB200 Tapped Base Set Screw Bearings

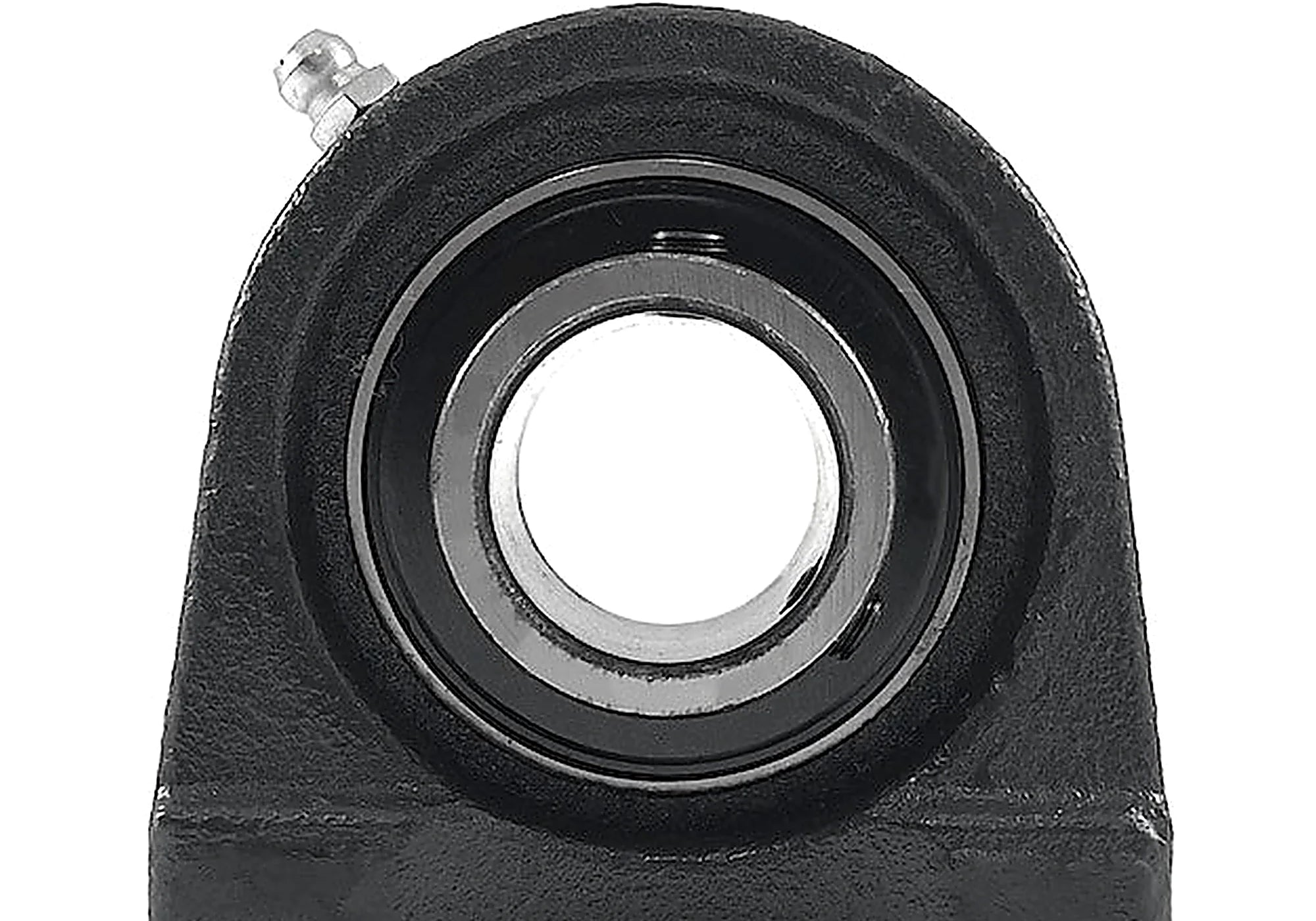

uctb bearing
UCTB200 bearings are tapped-base pillow block bearings that utilize set screws for securing onto the shaft. Our premium UCTB200 bearings feature C3 precision inserts housed within a high-strength cast iron housing with an easy access grease zerk for re-lubricating and maintaining the bearing. These bearings are standard duty commonly found in automotive, agriculture, construction, conveyors, fans, and plant machinery applications. We stock a full range of UCTB200 bearings in inch and metric bore sizes; for additional information or to get a quote, contact our customer service team, and we will gladly assist you!

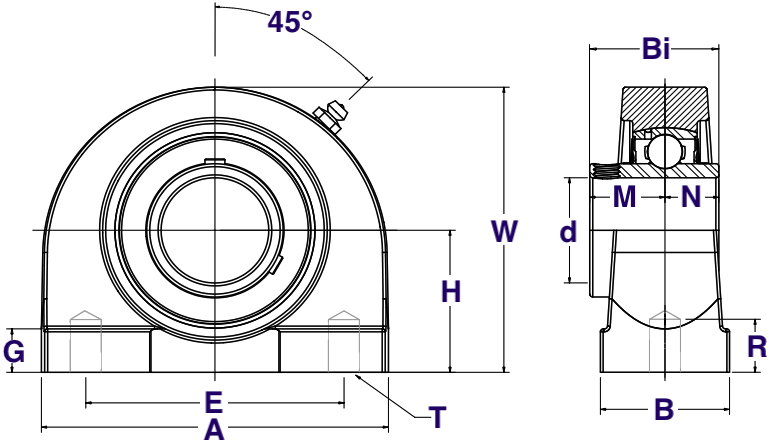

UCTB200 Bearing Sizes


Bearing # Shaft Dia. (H) (A) (E) (B) (R) (G) (W) (Bi) (N) (M) (Bolt Used) Dynamic Load Rating Static Load Rating Bearing Insert Housing Number Weight
UCTB201 12mm 33.3mm 73.0mm 50.8mm 38.0mm 13.0mm 11.0mm 65.0mm 31.0mm 12.7mm 18.3mm 3/8-16 12.82kN 6.65kN UC 201 TB 204 0.6kg
UCTB201-8 1/2" 1.313 2.88 2.00 1.50 0.50 0.44 2.56 1.2205 0.500 0.7205 3/8-16 2,883 LBS 1,496 LBS UC 201-8 TB 204 1.3
UCTB202 15mm 33.3mm 73.0mm 50.8mm 38.0mm 13.0mm 11.0mm 65.0mm 31.0mm 12.7mm 18.3mm 3/8-16 12.82kN 6.65kN UC 202 TB 204 0.6kg
UCTB202-10 5/8" 1.313 2.88 2.00 1.50 0.50 0.44 2.56 1.2205 0.500 0.7205 3/8-16 2,883 LBS 1,496 LBS UC 202-10 TB 204 1.3
UCTB203 17mm 33.3mm 73.0mm 50.8mm 38.0mm 13.0mm 11.0mm 65.0mm 31.0mm 12.7mm 18.3mm 3/8-16 12.82kN 6.65kN UC 203 TB 204 0.6kg
UCTB204-12 3/4" 1.313 2.88 2.00 1.50 0.50 0.44 2.56 1.2205 0.500 0.7205 3/8-16 2,883 LBS 1,496 LBS UC 204-12 TB 204 1.3
UCTB204 20mm 33.3mm 73.0mm 50.8mm 38.0mm 13.0mm 11.0mm 65.0mm 31.0mm 12.7mm 18.3mm 3/8-16 12.82kN 6.65kN UC 204 TB 204 0.6kg
UCTB205-14 7/8" 1.438 3.00 2.00 1.50 0.50 0.47 2.80 1.3425 0.5630 0.7795 3/8-16 3,155 LBS 1,810 LBS UC 205-14 TB 205 1.5
UCTB205-15 15/16" 1.438 3.00 2.00 1.50 0.50 0.47 2.80 1.3425 0.5630 0.7795 3/8-16 3,155 LBS 1,810 LBS UC 205-15 TB 205 1.5
UCTB205 25mm 36.5mm 76.0mm 50.8mm 38.0mm 13.0mm 12.0mm 71.0mm 34.1mm 14.3mm 19.8mm 3/8-16 14.04kN 8.05kN UC 205 TB 205 0.7kg
UCTB205-16 1" 1.438 3.00 2.00 1.50 0.50 0.47 2.80 1.3425 0.5630 0.7795 3/8-16 3,155 LBS 1,810 LBS UC 205-16 TB 205 1.5
UCTB206-17 1-1/16" 1.688 4.00 3.00 1.50 0.63 0.47 3.38 1.500 0.6260 0.8740 7/16-14 4,377 LBS 2,569 LBS UC 206-17 TB 206 2.9
UCTB206-18 1-1/8" 1.688 4.00 3.00 1.50 0.63 0.47 3.38 1.500 0.6260 0.8740 7/16-14 4,377 LBS 2,569 LBS UC 206-18 TB 206 2.9
UCTB206 30mm 42.9mm 102.0mm 76.2mm 38.0mm 16.0mm 12.0mm 86.0mm 38.1mm 15.9mm 22.2mm 7/16-14 19.47kN 11.43kN UC 206 TB 206 1.2kg
UCTB206-19 1-3/16" 1.688 4.00 3.00 1.50 0.63 0.47 3.38 1.500 0.6260 0.8740 7/16-14 4,377 LBS 2,569 LBS UC 206-19 TB 206 2.9
UCTB206-20 1-1/4" 1.688 4.00 3.00 1.50 0.63 0.47 3.38 1.500 0.6260 0.8740 7/16-14 4,377 LBS 2,569 LBS UC 206-20 TB 206 2.9
UCTB207-20 1-1/4" 1.875 4.25 3.25 1.88 0.75 0.50 3.75 1.6890 0.6890 1.000 1/2-13 5,775 LBS 3,497 LBS UC 207-20 TB 207 4.0
UCTB207-21 1-5/16" 1.875 4.25 3.25 1.88 0.75 0.50 3.75 1.6890 0.6890 1.000 1/2-13 5,775 LBS 3,497 LBS UC 207-21 TB 207 4.0
UCTB207-22 1-3/8" 1.875 4.25 3.25 1.88 0.75 0.50 3.75 1.6890 0.6890 1.000 1/2-13 5,775 LBS 3,497 LBS UC 207-22 TB 207 4.0
UCTB207 35mm 47.6mm 108.0m 82.6mm 48.0mm 19.0mm 13.0mm 95.0mm 42.9mm 19.0mm 30.2mm 1/2-13 25.69kN 15.56kN UC 207 TB 207 1.8kg
UCTB207-23 1-7/16" 1.875 4.25 3.25 1.88 0.75 0.50 3.75 1.6890 0.6890 1.000 1/2-13 5,775 LBS 3,497 LBS UC 207-23 TB 207 4.0
UCTB208-24 1-1/2" 1.938 4.63 3.50 1.88 0.75 0.50 3.94 1.9370 0.7480 1.1890 1/2-13 6,634 LBS 4,079 LBS UC 208-24 TB 208 5.0
UCTB208-25 1-9/16" 1.938 4.63 3.50 1.88 0.75 0.50 3.94 1.9370 0.7480 1.1890 1/2-13 6,634 LBS 4,079 LBS UC 208-25 TB 208 5.0
UCTB208 40mm 49.2mm 117.0mm 88.9mm 48.0mm 19.0mm 13.0mm 100.0mm 49.2mm 19.0mm 30.2mm 1/2-13 29.51kN 18.14kN UC 208 TB 208 5.0
UCTB209-26 1-5/8" 2.125 5.00 3.75 2.00 0.79 0.56 4.25 1.9370 0.7480 1.1890 1/2-13 7,160 LBS 4,676 LBS UC 209-26 TB 209 5.5
UCTB209-27 1-11/16" 2.125 5.00 3.75 2.00 0.79 0.56 4.25 1.9370 0.7480 1.1890 1/2-13 7,160 LBS 4,676 LBS UC 209-27 TB 209 5.5
UCTB209-28 1-3/4" 2.125 5.00 3.75 2.00 0.79 0.56 4.25 1.9370 0.7480 1.1890 1/2-13 7,160 LBS 4,676 LBS UC 209-28 TB 209 5.5
UCTB209 45mm 54.0mm 127.0mm
95.3mm 51.0mm 20.0mm 14.0mm 108.0mm 49.2mm 19.0mm 30.2mm 1/2-13 31.85kN 20.80kN UC 209 TB 209 2.5kg
UCTB210-30 1-7/8" 2.250 5.50 4.00 2.00 0.88 0.56 4.67 2.0315 0.7480 1.2835 5/8-11 7,867 LBS 5,330 LBS UC 210-30 TB 210 6.8
UCTB210-31 1-15/16" 2.250 5.50 4.00 2.00 0.88 0.56 4.67 2.0315 0.7480 1.2835 5/8-11 7,867 LBS 5,330 LBS UC 210-31 TB 210 6.8
UCTB210 50mm 57.2mm 140.0mm 101.6mm 51.0mm 22.0mm 14.0mm 117.0mm 51.6mm 19.0mm 32.6mm 5/8-11 35.00kN 23.71kN UC 210 TB 210 3.1kg
UCTB210-32 1-7/8" 2.250 5.50 4.00 2.00 0.88 0.56 4.67 2.0315 0.7480 1.2835 5/8-11 7,867 LBS 5,330 LBS UC 210-32 TB 210 6.8
UCTB211-32 2" 2.250 5.50 4.00 2.00 0.88 0.56 4.67 2.1890 0.8740 1.3150 5/8-11 9,743 LBS 6,608 LBS UC 211-32 TB 211 6.8
UCTB211-34 2-1/8" 2.250 5.50 4.00 2.00 0.88 0.56 4.67 2.1890 0.8740 1.3150 5/8-11 9,743 LBS 6,608 LBS UC 211-34 TB 211 6.8
UCTB211 55mm 57.2mm 140.0mm 101.6mm 51.0mm 22.0mm 14.0mm 117.0mm 55.6mm 22.2mm 33.4mm 5/8-11 43.34kN 29.40kN UC 211 TB 211 3.1kg
UCTB211-35 2-3/16" 2.250 5.50 4.00 2.00 0.88 0.56 4.67 2.1890 0.8740 1.3150 5/8-11 9,743 LBS 6,608 LBS UC 211-36 TB 211 6.8
