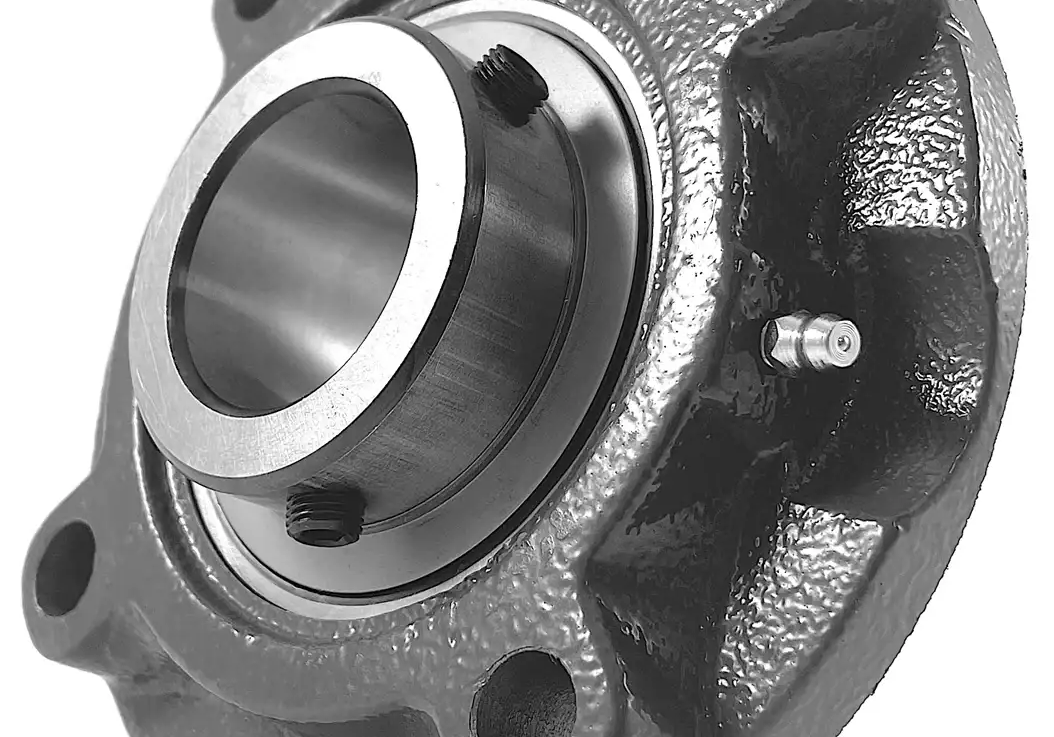

UCFCSX00 4-Bolt Set Screw Flange Bearing
UCFCSX00 bearings are medium-duty four-bolt flange cartridge bearings that utilize set screws for securing onto a shaft. This bearing style is found in various applications, such as lumber mills, plant machinery, conveyors, agricultural equipment, and more! Our UCFCSX00 bearings feature a performance C3 bearing that is housed within a high-strength cast housing for long-term durability and performance; they are also made to industry-standard dimensions for direct interchangeability with other brands. For additional information or to get a quote on UCFCSX00 bearings, contact our customer support team, and we will be happy to assist you!
UCFCSX00 Bearing Dimensions
| Bearing # | Shaft Dia. | (A) | (P) | (E) | (I) | (S) | (J) | (K) | (G) | (F*) | (Z) | (Bi) | (N) | (M) | Bolt Used | Dynamic Load Rating | Static Load Rating | Bearing Insert | Housing Number | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFCSX05-14 | 7/8" | 4.38" | 3.625" | 2.56" | 0.39" | 0.47" | 0.25" | 0.38" | 0.94" | 3.000" | 1.27" | 1.5000" | 0.6260" | 0.8740" | 3/8" | 4,377 LBS | 2,569 LBS | UCX 05-14 | FCS 206 | 2.6 LBS |
| UCFCSX05-15 | 15/16" | 4.38" | 3.625" | 2.56" | 0.39" | 0.47" | 0.25" | 0.38" | 0.94" | 3.000" | 1.27" | 1.5000" | 0.6260" | 0.8740" | 3/8" | 4,377 LBS | 2,569 LBS | UCX 05-15 | FCS 206 | 2.6 LBS |
| UCFCSX05 | 25mm | 111.0mm | 92.1mm | 65.0mm | 9.9mm | 12.0mm | 6.1mm | 9.4mm | 23.9mm | 76.2mm | 32.3mm | 38.1mm | 15.9mm | 22.2mm | M10 | 19.47 kN | 11.43 kN | UCX 05 | FCS 206 | 1.2 kg |
| UCFCSX05-16 | 1" | 4.38" | 3.625" | 2.56" | 0.39" | 0.47" | 0.25" | 0.38" | 0.94" | 3.000" | 1.27" | 1.5000" | 0.6260" | 0.8740" | 3/8" | 4,377 LBS | 2,569 LBS | UCX 05-16 | FCS 206 | 2.6 LBS |
| UCFCSX06-18 | 1-1/8" | 5.00" | 4.125" | 2.94" | 0.31" | 0.47" | 0.38" | 0.38" | 0.88" | 3.375" | 1.31" | 1.6890" | 0.6890" | 1.0000" | 3/8" | 5,775 LBS | 3,497 LBS | UCX 06-18 | FCS 207 | 3.5 LBS |
| UCFCSX06 | 30mm | 127.0mm | 104.8mm | 74.0mm | 7.9mm | 12.0mm | 9.4mm | 9.4mm | 22.6mm | 85.7mm | 33.3mm | 42.9mm | 17.5mm | 25.4mm | M10 | 25.69 kN | 15.56 kN | UCX 06 | FCS 207 | 1.6 kg |
| UCFCSX06-19 | 1-3/16" | 5.00" | 4.125" | 2.94" | 0.31" | 0.47" | 0.38" | 0.38" | 0.88" | 3.375" | 1.31" | 1.6890" | 0.6890" | 1.0000" | 3/8" | 5,775 LBS | 3,497 LBS | UCX 06-19 | FCS 207 | 3.5 LBS |
| UCFCSX06-20 | 1-1/4" | 5.00" | 4.125" | 2.94" | 0.31" | 0.47" | 0.38" | 0.38" | 0.88" | 3.375" | 1.31" | 1.6890" | 0.6890" | 1.0000" | 3/8" | 5,775 LBS | 3,497 LBS | UCX 06-20 | FCS 207 | 3.5 LBS |
| UCFCSX07-22 | 1-3/8" | 5.25" | 4.375" | 3.09" | 0.35" | 0.47" | 0.44" | 0.44" | 1.02" | 3.625" | 1.54" | 1.9370" | 0.7480" | 1.1890" | 7/16" | 6,634 LBS | 4,079 LBS | UCX 07-22 | FCS 208 | 4.4 LBS |
| UCFCSX07 | 35mm | 133.4mm | 111.1mm | 78.0mm | 8.9mm | 12.0mm | 10.9mm | 10.9mm | 25.9mm | 92.1mm | 39.1mm | 49.2mm | 19.0mm | 30.2mm | M10 | 29.51 kN | 18.14 kN | UCX 07 | FCS 208 | 2.0 kg |
| UCFCSX07-23 | 1-7/16" | 5.25" | 4.375" | 3.09" | 0.35" | 0.47" | 0.44" | 0.44" | 1.02" | 3.625" | 1.54" | 1.9370" | 0.7480" | 1.1890" | 7/16" | 6,634 LBS | 4,079 LBS | UCX 07-23 | FCS 208 | 4.4 LBS |
| UCFCSX08-24 | 1-1/2" | 5.25" | 4.375" | 3.09" | 0.35" | 0.55" | 0.44" | 0.44" | 0.98" | 4.250" | 1.54" | 1.9370" | 0.7480" | 1.1890" | 1/2" | 7,160 LBS | 4,676 LBS | UCX 08-24 | FCS 209 | 4.8 LBS |
| UCFCSX08 | 40mm | 133.4mm | 111.1mm | 78.0mm | 8.9mm | 14.0mm | 10.9mm | 10.9mm | 24.9mm | 108.0mm | 39.1mm | 49.2mm | 19.0mm | 30.2mm | M12 | 31.85 kN | 20.80 kN | UCX 08 | FCS 209 | 2.2 kg |
| UCFCSX09-26 | 1-5/8" | 6.13" | 5.125" | 3.63" | 0.31" | 0.55" | 0.47" | 0.44" | 0.98" | 4.250" | 1.59" | 2.0315" | 0.7480" | 1.2890" | 1/2" | 7,867 LBS | 5,330 LBS | UCX 09-26 | FCS 210 | 5.9 LBS |
| UCFCSX09-27 | 1-11/16" | 6.13" | 5.125" | 3.63" | 0.31" | 0.55" | 0.47" | 0.44" | 0.98" | 4.250" | 1.59" | 2.0315" | 0.7480" | 1.2890" | 1/2" | 7,867 LBS | 5,330 LBS | UCX 09-27 | FCS 210 | 5.9 LBS |
| UCFCSX09-28 | 1-3/4" | 6.13" | 5.125" | 3.63" | 0.31" | 0.55" | 0.47" | 0.44" | 0.98" | 4.250" | 1.59" | 2.0315" | 0.7480" | 1.2890" | 1/2" | 7,867 LBS | 5,330 LBS | UCX 09-28 | FCS 210 | 5.9 LBS |
| UCFCSX09 | 45mm | 155.4mm | 130.2mm | 92.0mm | 7.9mm | 14.0mm | 11.9mm | 10.9mm | 24.9mm | 108.0mm | 90.4mm | 51.6mm | 19.0mm | 32.6mm | M12 | 35.00 kN | 23.71 kN | UCX 09 | FCS 210 | 2.7 kg |
| UCFCSX10-30 | 1-7/8" | 6.38" | 5.375" | 3.81" | 0.28" | 0.55" | 0.63" | 0.44" | 1.02" | 4.500" | 1.59" | 2.1890" | 0.8740" | 1.3150" | 1/2" | 9,743 LBS | 6,608 LBS | UCX 10-30 | FCS 211 | 7.3 LBS |
| UCFCSX10-31 | 1-15/16" | 6.38" | 5.375" | 3.81" | 0.28" | 0.55" | 0.63" | 0.44" | 1.02" | 4.500" | 1.59" | 2.1890" | 0.8740" | 1.3150" | 1/2" | 9,743 LBS | 6,608 LBS | UCX 10-31 | FCS 211 | 7.3 LBS |
| UCFCSX10 | 50mm | 162.1mm | 136.5mm | 97.0mm | 7.1mm | 14.0mm | 16.0mm | 10.9mm | 25.9mm | 114.3mm | 40.4mm | 55.6mm | 22.2mm | 33.4mm | M12 | 43.34 kN | 29.40 kN | UCX 10 | FCS 211 | 3.3 kg |
| UCFCSX10-32 | 2" | 6.38" | 5.375" | 3.81" | 0.28" | 0.55" | 0.63" | 0.44" | 1.02" | 4.500" | 1.59" | 2.1890" | 0.8740" | 1.3150" | 1/2" | 9,743 LBS | 6,608 LBS | UCX 10-32 | FCS 211 | 7.3 LBS |
| UCFCSX11-34 | 2-1/8" | 7.13" | 6.000" | 4.25" | 0.16" | 0.55" | 0.88" | 0.50" | 1.02" | 5.000" | 1.72" | 2.5630" | 1.0000" | 1.5630" | 1/2" | 10,720 LBS | 7,516 LBS | UCX 11-34 | FCS 212 | 9.7 LBS |
| UCFCSX11 | 55mm | 180.8mm | 152.4mm | 108.0mm | 4.1mm | 14.0mm | 22.1mm | 13.0mm | 25.9mm | 127.0mm | 43.7mm | 65.1mm | 25.4mm | 39.7mm | M12 | 47.69 kN | 33.43 kN | UCX 11 | FCS 212 | 4.4 kg |
| UCFCSX11-35 | 2-3/16" | 7.13" | 6.000" | 4.25" | 0.16" | 0.55" | 0.88" | 0.50" | 1.02" | 5.000" | 1.72" | 2.5630" | 1.0000" | 1.5630" | 1/2" | 10,720 LBS | 7,516 LBS | UCX 11-35 | FCS 212 | 9.7 LBS |
| UCFCSX11-36 | 2-1/4" | 7.13" | 6.000" | 4.25" | 0.16" | 0.55" | 0.88" | 0.50" | 1.02" | 5.000" | 1.72" | 2.5630" | 1.0000" | 1.5630" | 1/2" | 10,720 LBS | 7,516 LBS | UCX 11-36 | FCS 212 | 9.7 LBS |
| UCFCSX12 | 60mm | 193.7mm | 165.1mm | 117.0mm | 10.9mm | 14.0mm | 20.1mm | 14.0mm | 33.0mm | 139.7mm | 50.8mm | 65.1mm | 25.4mm | 39.7mm | M12 | 57.20 kN | 40.01 kN | UCX 12 | FCS 213 | 5.4 kg |
| UCFCSX12-38 | 2-3/8" | 7.63" | 6.500" | 4.63" | 0.43" | 0.55" | 0.79" | 0.56" | 1.30" | 5.500" | 2.00" | 2.5630" | 1.0000" | 1.5630" | 1/2" | 12,859 LBS | 8,994 LBS | UCX 12-38 | FCS 213 | 11.9 LBS |
| UCFCSX12-39 | 2-7/16" | 7.63" | 6.500" | 4.63" | 0.43" | 0.55" | 0.79" | 0.56" | 1.30" | 5.500" | 2.00" | 2.5630" | 1.0000" | 1.5630" | 1/2" | 12,859 LBS | 8,994 LBS | UCX 12-39 | FCS 213 | 11.9 LBS |
| UCFCSX13-40 | 2-1/2" | 7.63" | 6.500" | 5.28" | 0.43" | 0.55" | 0.79" | 0.56" | 1.31" | 5.500" | 2.18" | 2.9370" | 1.1890" | 1.7480" | 1/2" | 13,981 LBS | 9,869 LBS | UCX 13-40 | FCS 214 | 13.2 LBS |
| UCFCSX13 | 65mm | 193.7mm | 165.1mm | 134.0mm | 10.9mm | 14.0mm | 20.1mm | 14.0mm | 33.3mm | 139.7mm | 55.4mm | 74.6mm | 30.2mm | 44.4mm | M12 | 62.19 kN | 43.90 kN | UCX 13 | FCS 214 | 6.0 kg |
| UCFCSX14-43 | 2-11/16" | 8.75" | 7.500" | 5.28" | 0.55" | 0.69" | 0.79" | 0.63" | 1.42" | 6.375" | 2.30" | 3.0630" | 1.3110" | 1.7520" | 5/8" | 14,974 LBS | 10,757 LBS | UCX 14-43 | FCS 215 | 15.4 LBS |
| UCFCSX14 | 70mm | 222.3mm | 190.5mm | 134.0mm | 14.0mm | 18.0mm | 20.1mm | 16.0mm | 36.1mm | 161.9mm | 58.4mm | 77.8mm | 33.3mm | 44.5mm | M16 | 66.61 kN | 47.85 kN | UCX 14 | FCS 215 | 7.0 kg |
| UCFCSX15-47 | 2-15/16" | 8.75" | 7.500" | 5.28" | 0.47" | 0.69" | 0.87" | 0.63" | 1.38" | 6.375" | 2.41" | 3.2520" | 1.3110" | 1.9409" | 5/8" | 16,325 LBS | 11,992 LBS | UCX 15-47 | FCSX15 | 17.6 LBS |
| UCFCSX15 | 75mm | 222.3mm | 190.5mm | 134.0mm | 11.9mm | 18.0mm | 22.1mm | 16.0mm | 35.1mm | 161.9mm | 61.2mm | 82.6mm | 33.3mm | 49.3mm | M16 | 72.62 kN | 53.35 kN | UCX 15 | FCSX15 | 8.0 kg |
| UCFCSX15-48 | 3" | 8.75" | 7.500" | 5.28" | 0.47" | 0.69" | 0.87" | 0.63" | 1.38" | 6.375" | 2.41" | 3.2520" | 1.3110" | 1.9409" | 5/8" | 16,325 LBS | 11,992 LBS | UCX 15-48 | FCSX15 | 17.6 LBS |
| UCFCSX17 | 85mm | 260.1mm | 218.9mm | 155.0mm | 9.9mm | 21.0mm | 24.9mm | 19.1mm | 36.1mm | 187.3mm | 66.2mm | 96.0mm | 39.7mm | 56.3mm | M18 | 95.84 kN | 64.54 kN | UCX 17 | FCSX17 | 12.9 kg |
| UCFCSX17-55 | 3-7/16" | 10.25" | 8.625" | 6.13" | 0.39" | 0.81" | 0.98" | 0.75" | 1.42" | 7.375" | 2.59" | 3.7795" | 1.5630" | 2.2165" | 3/4" | 21,546 LBS | 14,509 LBS | UCX 17-55 | FCSX17 | 28.4 LBS |
| UCFCSX17-56 | 3-1/2" | 10.25" | 8.625" | 6.13" | 0.39" | 0.81" | 0.98" | 0.75" | 1.42" | 7.375" | 2.59" | 3.7795" | 1.5630" | 2.2165" | 3/4" | 21,546 LBS | 14,509 LBS | UCX 17-56 | FCSX17 | 28.4 LBS |
| UCFCSX20 | 100mm | 276.0mm | 238.0mm | 168.0mm | 22.0mm | 23.0mm | 28.0mm | 22.0mm | 66.0mm | 206.4mm | 82.3mm | 117.5mm | 49.2mm | 60.3mm | M20 | 130.51 kN | 102.94 kN | UCX 20 | FCSX20 | 18.5 kg |
| UCFCSX20-63 | 3-15/16" | 10.88" | 9.375" | 6.63" | 0.87" | 0.91" | 1.10" | 0.88" | 2.60" | 8.125" | 3.25" | 4.6260" | 1.9370" | 2.3740" | 3/4" | 29,339 LBS | 23,141 LBS | UCX 20-63 | FCSX20 | 40.7 LBS |
| UCFCSX20-64 | 4" | 10.88" | 9.375" | 6.63" | 0.87" | 0.91" | 1.10" | 0.88" | 2.60" | 8.125" | 3.25" | 4.6260" | 1.9370" | 2.3740" | 3/4" | 29,339 LBS | 23,141 LBS | UCX 20-64 | FCSX20 | 40.7 LBS |
