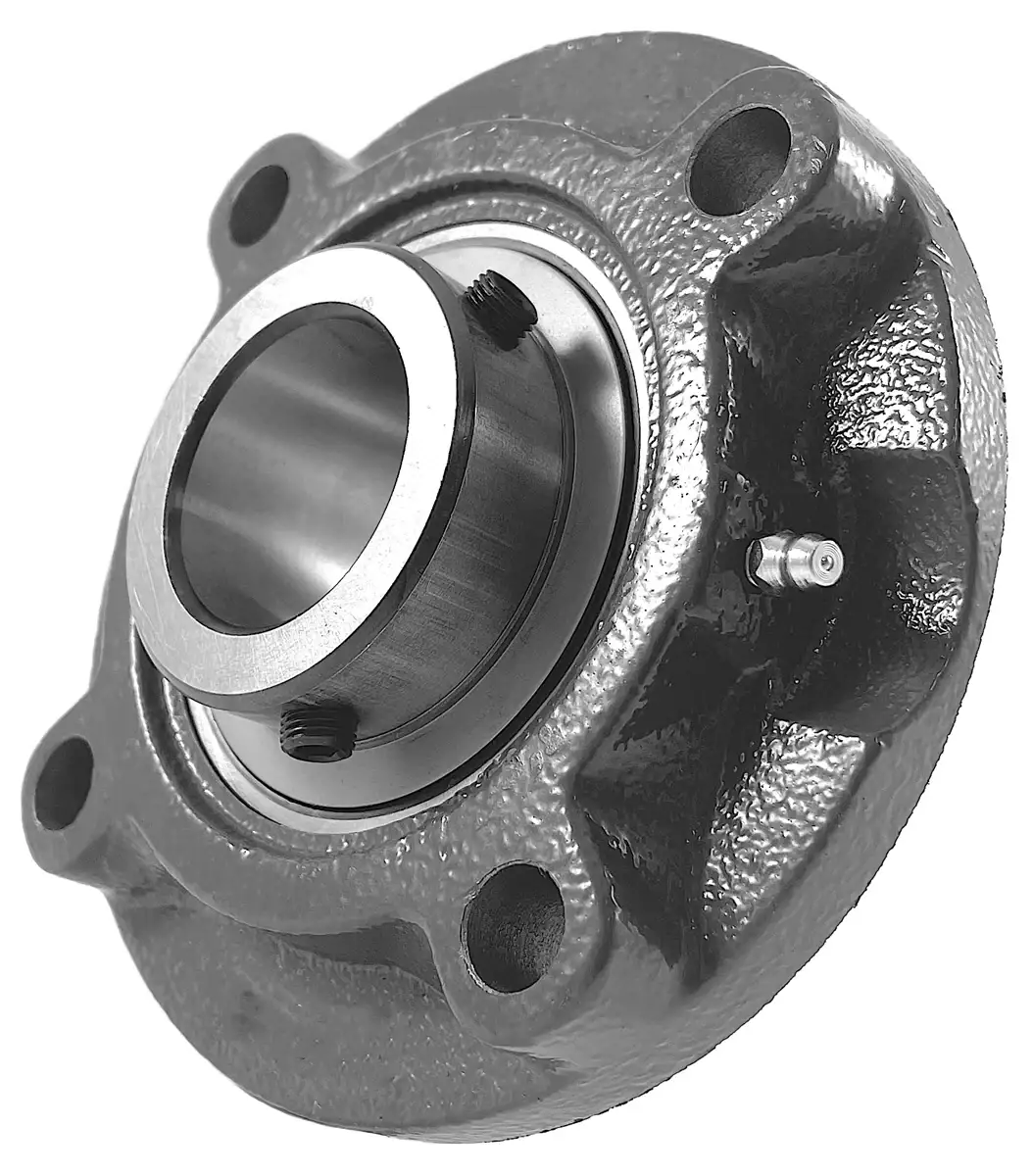

UCFCSX10 Bearing | 50mm 4-Bolt Flange Bearing

UCFCSX10 bearing is a 50mm bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 50mm shaft and has an inch based housing. UCFCSX10 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCSX10 bearing with a 50mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCSX10 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCSX10 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCSX10 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCSX10 bearings, and we will be happy to assist you!

UCFCSX10 Bearing Dimensions

• Part #: UCFCSX10
• Shaft Diameter (d): 50mm
• Dimension (A): 162.1mm
• Dimension (P): 136.5mm
• Dimension (E): 97.0mm
• Dimension (I): 7.1mm
• Dimension (S): 14.0mm
• Dimension (J): 16.0mm
• Dimension (K): 10.9mm
• Dimension (G): 25.9mm
• Dimension (F): 114.3mm
• Dimension (Z): 40.4mm
• Dimension (Bi): 55.6mm
• Dimension (N): 22.2mm
• Dimension (M): 33.4mm
• Bolt Used: M12
• Dynamic Load Rating (kN): 43.34
• Static Load Rating (kN): 29.40
• Bearing Insert: UCX 10
• Housing Number: FCS 211
• Weight (kg): 3.3
