Single-Strand Heavy Roller Chain

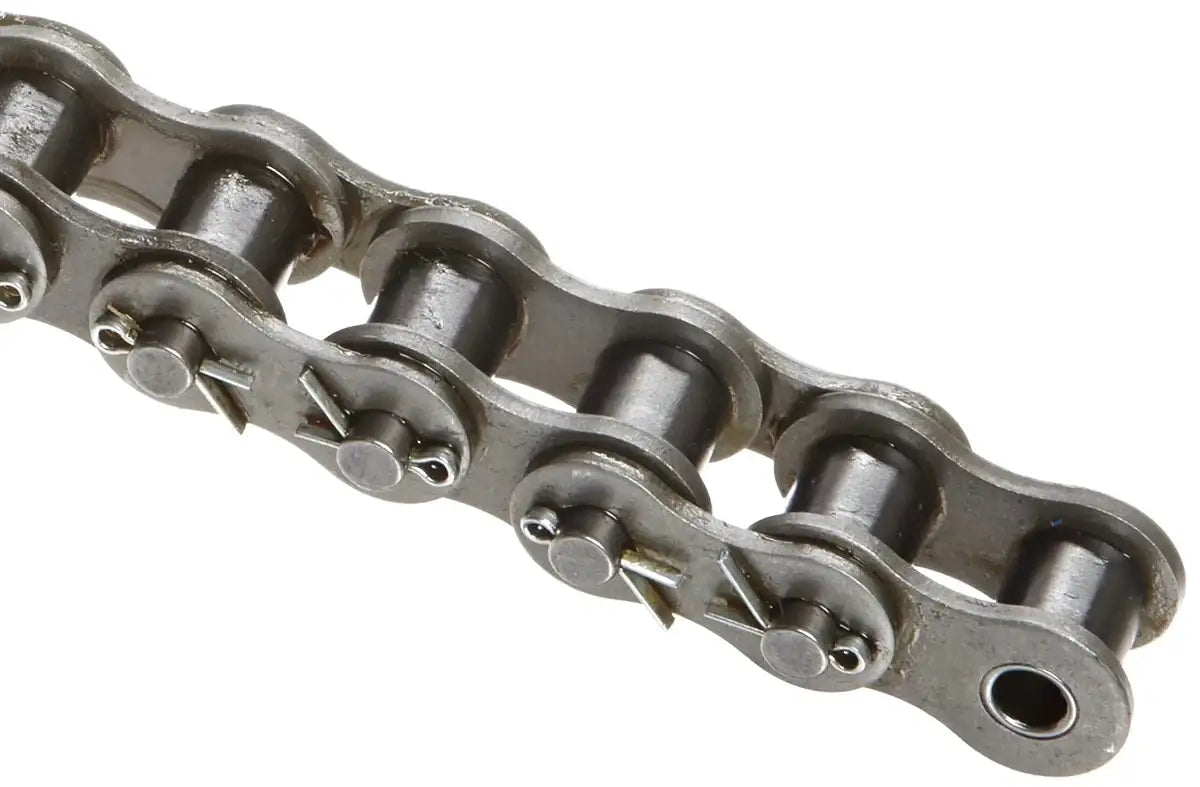

Single-strand heavy roller chains, known as simplex heavy roller chains, include ANSI sizes 25H - 240H and BS metric sizes 10BH and 12BH. Single-strand heavy chains can run on standard roller chain sprockets and benefit from a thicker side plate design that improves tensile strength, fatigue rating, and overall working life. From three different quality levels (Economy Plus, General Duty Plus, and Premier Series) and two diffident configurations (riveted and cottered), our selection of simplex heavy-duty roller chains is second to none!
Single Strand Heavy Roller Chain Sizes
| Chain Size | Pitch (P) | Roller Diameter (D) | Inner Width (e) | Pin Dia. (d) | Plate Thickness (T) | Weight Per Foot (LBS) |
|---|---|---|---|---|---|---|
| 25H | 0.250" | 0.130" | 0.125" | 0.091" | -- | 0.12 |
| 35H | 0.375" | 0.200" | 0.188" | 0.141" | 0.060" | 0.28 |
| 40H | 0.500" | 0.312" | 0.312" | 0.156" | 0.080" | 0.47 |
| 50H | 0.625" | 0.400" | 0.375" | 0.200" | 0.093" | 0.77 |
| 60H | 0.750" | 0.469" | 0.500" | 0.234" | 0.125" | 1.3 |
| 80H | 1.000" | 0.625" | 0.625" | 0.312" | 0.156" | 2.1 |
| 100H | 1.250" | 0.750" | 0.750" | 0.375" | 0.187" | 3.0 |
| 120H | 1.500" | 0.875" | 1.000" | 0.437" | 0.219" | 4.4 |
| 140H | 1.750" | 1.000" | 1.000" | 0.500" | 0.250" | 5.6 |
| 160H | 2.000" | 1.125" | 1.250" | 0.562" | 0.281" | 6.9 |
| 180H | 2.250" | 1.406" | 1.406" | 0.687" | 0.312" | 10.0 |
| 200H | 2.500" | 1.562" | 1.500" | 0.781" | 0.375" | 12.9 |
| 240H | 3.000" | 1.875" | 1.875" | 0.937" | 0.500" | 20.4 |
