XTH15F8 Hub
Note:
XT is A Registered Trademark of VanGorp
SKU: XTH15F8-HUB
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
XTH15F8 Hub Description/Features
XTH15F8 Hub Specifications

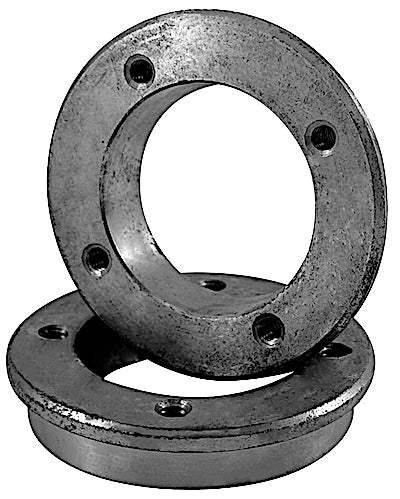

The XTH15F8 hub is a type 2 XT-style hub designed for conveyor pulley applications. This hub utilizes a 2" per foot taper that provides superior holding power compared to a standard taper hub. Our premium XTH15F8 hub is precision-actuated to pair perfectly with XTB15 bushings. The XTH15F8 hub provides reduced axial movement to reduce end disc prestressing and is easy to install. For more information or to get a quote on our XTH15F8 hubs, contact our customer service team, and we will gladly assist you!
XTH15F8 Hub Dimensions
- Part #: XTH15F8
- Outside Diameter: 7.807"
- Dimension (A): 1/4"
- Dimension (B): 2.000"
- Dimension (C): 2.875"
- Dimension (V): 2-7/16"
- Dimension (X): 11/16"
- Amount of Tapped Holes: 4
- Tapped Hole Size: 1/4-20NC
- Weight: 3.8 LBS
- Part #: XTH15F8
- Outside Diameter: 7.807"
- Dimension (A): 1/4"
- Dimension (B): 2.000"
- Dimension (C): 2.875"
- Dimension (V): 2-7/16"
- Dimension (X): 11/16"
- Amount of Tapped Holes: 4
- Tapped Hole Size: 1/4-20NC
- Weight: 3.8 LBS
