XTH100 Hub
Note:
XT is A Registered Trademark of VanGorp
SKU: XTH100-HUB
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
XTH100 Hub Description/Features
XTH100 Hub Specifications

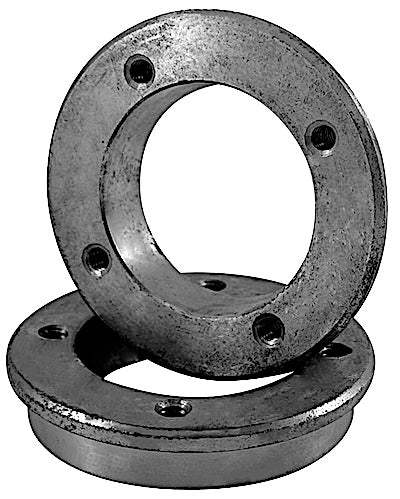

The XTH100 hub is a specific hub designed for conveyor pulleys. This hub utilizes a 2" per foot taper that provides superior holding power compared to a standard taper hub. Our premium XTH100 hub is precision-actuated to pair perfectly with XTB100 bushings. The XTH100 hub provides reduced axial movement to reduce end disc prestressing and is easy to install. For more information or to get a quote on our XTH100 hubs, contact our customer service team, and we will gladly assist you!
XTH100 Hub Dimensions
- Part #: XTH100
- Outside Diameter: 17.940"
- Dimension (A): 3"
- Dimension (B): 13.688"
- Dimension (C): 17.500"
- Dimension (V): 15-9/16"
- Dimension (X): 4-1/8"
- Dimension (d): 1-3/4"
- Amount of Tapped Holes: 6
- Tapped Hole Size: 1-1/8-7NC
- Weight: 122.0 LBS
- Part #: XTH100
- Outside Diameter: 17.940"
- Dimension (A): 3"
- Dimension (B): 13.688"
- Dimension (C): 17.500"
- Dimension (V): 15-9/16"
- Dimension (X): 4-1/8"
- Dimension (d): 1-3/4"
- Amount of Tapped Holes: 6
- Tapped Hole Size: 1-1/8-7NC
- Weight: 122.0 LBS
